Harmer Alu. Vertical Drain Stainless Steel Clamp & Star Grate - Tile Floor 150x150mm

Product Code:
Est. Delivery: TBC*

* COVID-19: Due to supplier issues this product isn't currently available to purchase.

£203.06 Incl. VAT
£169.22 Ex. VAT
Oops! Please select from the options

Product Description

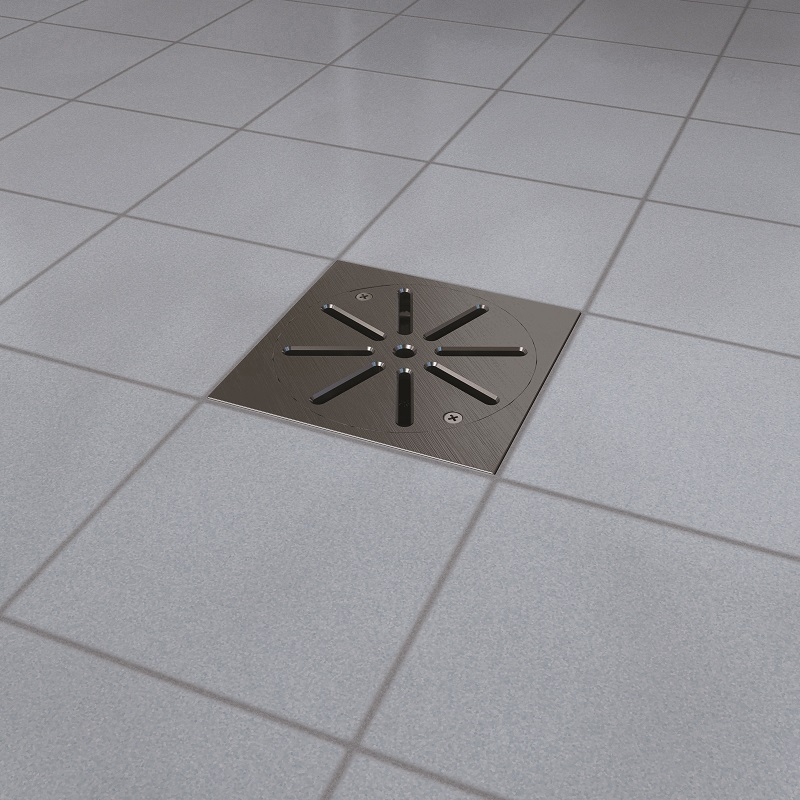

This Harmer aluminium vertical shower drain features a stainless steel clamp with a star drain grate and a 150mm x 150mm tile frame. The drain cap itself can be easily removed to be cleaned, to be replaced, or to give access to the 50mm trap below. Vertical Harmer shower drain bodies push fit into 110mm ring seal pipe sockets as well as being compatible with 56mm cast iron, HDPE and PVC pipes. A removable 50mm foul air trap comes with this product.

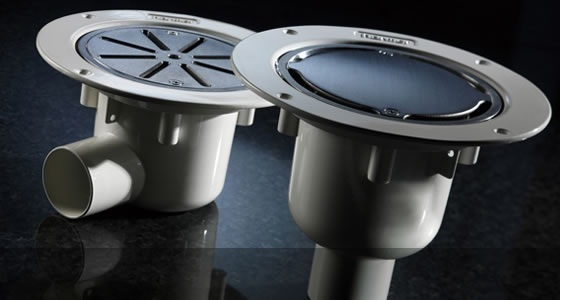

Lightweight, durable and strong thanks to their LM6 aluminium alloy manufacture and a polyester powder coating for increased protection, Harmer aluminium shower drains offer a flow rate of up to 1.3 litres a second. Suitable for application in timber and concrete floors, including suspended floors where shallow invert pipes are needed, a range of attractive caps and grates in stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

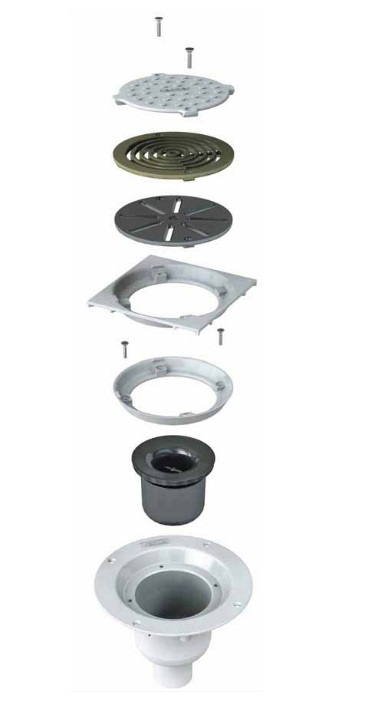

Please note: This product includes stainless steel screws, a drain cap, a tile frame, a clamp and clamp screws, a 50mm foul air trap and a vertical drain body.

Why choose Harmer aluminium shower drains?

Harmer aluminium shower drains have been designed specifically to meet the requirements of British and European standard BS EN 1253 for design, flow performance and loading whilst providing an attractive and efficient shower drain. Harmer shower drain bodies are manufactured from 100% recycled aluminium that can be recycled once again at the end of its life cycle. LM6 aluminium alloy is used to create the drain bodies as in marine conditions and general atmospheric conditions, the material displays high resistance to corrosion.

Harmer shower drains can withstand up to 300kg of vertical loading and there’s an option available to order security fixings for drain caps in areas where the cap may otherwise be tampered with. Contact us on 01752 692 221 for more information.

Harmer Aluminium Vertical Shower Drain Specification

Cap Style: Star drain grate
Flow Rate: 0.8 litres/second
Load Class: K3 to BS EN 1253
