Harmer Aluminium Vertical Drain Nickel Clamp & Ring Grate 200mm x 200mm - Tile Floor

Code:
AVS/RN/T20
Brand:
Harmer

Finished with a nickel bronze clamp, concentric ring pattern grate and a 200mm x 200mm tile frame, this vertical shower drain from Harmer is made from LM6 aluminium alloy with a polyester powder coating for heightened protection, enduring up to 300kg of vertical loading. Delive...Read More

View full product details
View questions about this product
£275.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Apr 30th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Amazing Thank you"

Lauren Jones
Description Specification Downloads Q&A

Description

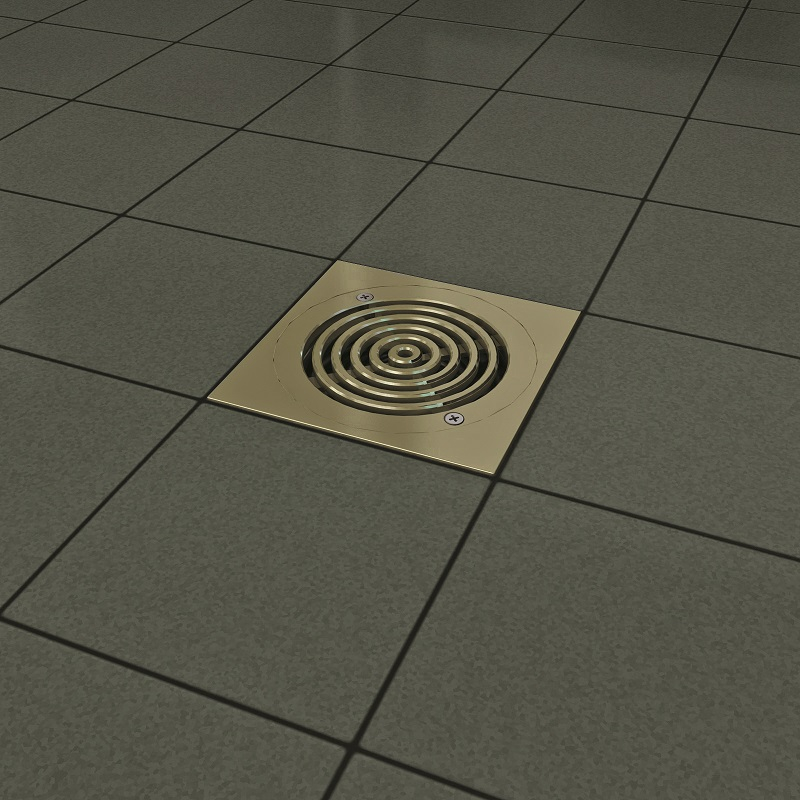

Finished with a nickel bronze clamp, concentric ring pattern grate and a 200mm x 200mm tile frame, this vertical shower drain from Harmer is made from LM6 aluminium alloy with a polyester powder coating for heightened protection, enduring up to 300kg of vertical loading.

Delivering a flow rate of up to 0.8 litres per second, this vertical shower drain is lightweight yet durable and strong. Suitable for timber and concrete floor applications with tiled flooring, including suspended floors where shallow invert pipes are required, it has a drain cap which is easily removed for replacement, cleaning or providing access to the removable 50mm foul air trap beneath. Compatible with 56mm cast iron, HDPE and PVC pipes, the shower drain body can also simply push fit into 110mm ring seal pipe sockets.

Features & Benefits: Harmer Aluminium Vertical Drain Nickel Clamp & Ring Grate 200mm x 200mm - Tile Floor

  • Highly resistant to corrosion
  • Strong and durable yet lightweight
  • Nickel bronze concentric ring grate
  • K3 Load Class to BS EN 1253
  • 0.8 litres per second flow rate
  • Suitable for concrete and timber floors
  • Ideal for tiled flooring
  • Made from LM6 aluminium alloy with protective polyester powder coating
  • Fully recyclable

Specially designed to meet the specifications of British and European standard BS EN 1253 for design, flow performance and loading, this Harmer aluminium shower drain offers an effective yet attractive solution for your shower. Produced from 100% recycled aluminium, it is fully recyclable again once it has completed its lifecycle. The LM6 aluminium alloy used to construct the drain body has high corrosion resistance, withstanding marine environments and general atmospheric conditions.

Harmer Aluminium Vertical Drain Contents

  • 1 x concentric ring grate drain cap
  • 1 x 200mm x 200mm tile frame
  • 1 x nickel bronze clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Please note:

  • There is an option available to order security fixings for drain caps in locations where the cap may otherwise be tampered with. Contact us for more information.

Details

Material Aluminium
Nickel Product Type Shower Drain Floor Type Tiled Flooring Application Concrete
Floors
Timber
