Harmer Aluminium Vertical Drain Nickel Clamp & Ring Grate 150mm x 150mm - Tile Floor

Code:
AVS/RN/T15
Brand:
Harmer

This vertical shower drain from Harmer includes a nickel bronze clamp with a 150mm x 150mm tile frame and a concentric ring pattern grate. Thanks to its LM6 aluminium alloy structure and polyester powder layer for extra protection, its body is lightweight yet durable and stron...Read More

View full product details
View questions about this product
£230.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Apr 23rd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"The ordering and delivery of the i…"

Denis Albutt
Description Specification Downloads Q&A

Description

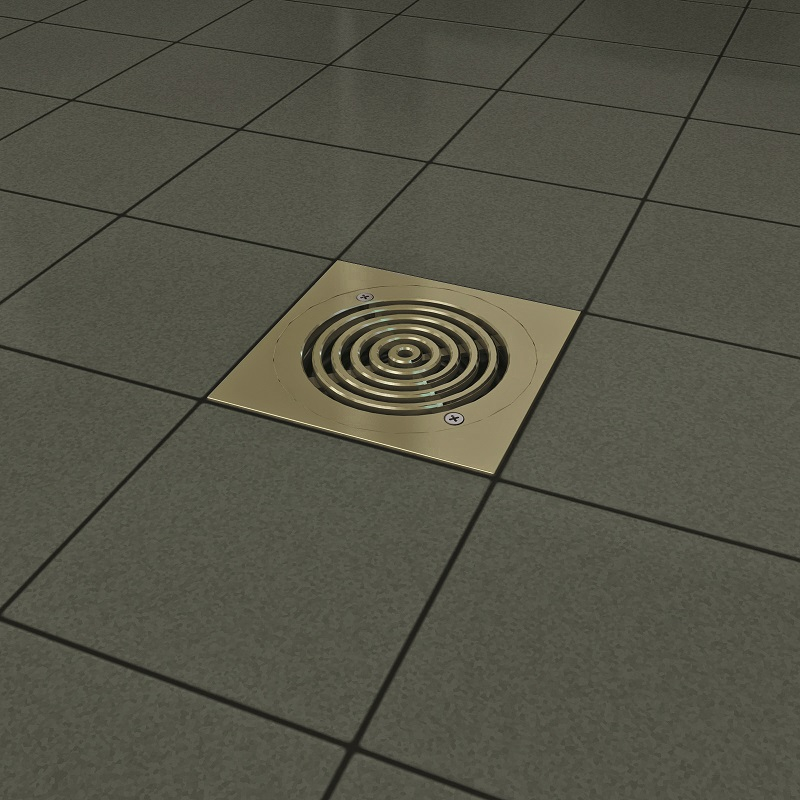

This vertical shower drain from Harmer includes a nickel bronze clamp with a 150mm x 150mm tile frame and a concentric ring pattern grate. Thanks to its LM6 aluminium alloy structure and polyester powder layer for extra protection, its body is lightweight yet durable and strong as well as extremely corrosion resistant so it can endure marine conditions and general atmospheric environments.

Delivering a flow rate of up to 0.8 litres per second, this Harmer vertical shower drain is compatible with 56mm PVC, HDPE and cast iron pipes or it can simply push fit into 110mm ring seal pipe sockets. Its drain cap is effortless to remove giving access to the removable 50mm foul air trap, for cleaning or being replaced. Manufactured from completely recycled aluminium, the drain body is also fully recyclable once again at the end of its lifetime.

Features & Benefits: Harmer Aluminium Vertical Drain Nickel Clamp & Ring Grate 150mm x 150mm - Tile Floor

  • K3 Load Class to BS EN 1253
  • 0.8 litres per second flow rate
  • Nickel bronze concentric ring grate
  • 150mm x 150mm tile frame
  • LM6 aluminium alloy structure with polyester powder coating
  • Lightweight yet durable and strong
  • Extremely corrosion resistant
  • Compatible with 56mm PVC, HDPE and cast iron pipes or 110mm ring seal pipe sockets
  • Suitable for use in timber and concrete floor applications

Withstanding up to 300kg of vertical loading, this shower drain can provide an efficient yet attractive solution while meeting the requirements of British and European standard BS EN 1253 for design, flow performance and loading. Suitable for use in timber and concrete floor applications, including suspended floors where shallow invert pipes are required, it is ideal for tiled flooring.

Harmer Aluminium Vertical Drain Contents

  • 1 x concentric ring grate drain cap
  • 1 x 150mm x 150mm tile frame
  • 1 x nickel bronze clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • There is an option available to order security fixings for drain caps in areas where the cap may otherwise be tampered with. Contact us for more information.

Details

Material Aluminium
Nickel Product Type Shower Drain Floor Type Tiled Flooring Application Concrete
Floors
Timber
