Harmer Alu. Vertical Drain Nickel Clamp & Plain Cap - Tile Floor 150x150mm

Product Code:
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£244.18 Incl. VAT
Oops! Please select from the options


This Harmer aluminium vertical shower drain features a nickel bronze clamp with a plain drain cap and a 150mm x 150mm tile frame. The drain cap itself can be easily removed to be cleaned, to be replaced, or to give access to the 50mm trap below. Vertical Harmer shower drain bodies push fit into 110mm ring seal pipe sockets as well as being compatible with 56mm cast iron, HDPE and PVC pipes. A removable 50mm foul air trap comes with this product.

Lightweight, durable and strong thanks to their LM6 aluminium alloy manufacture and a polyester powder coating for increased protection, Harmer aluminium shower drains offer a flow rate of up to 1.3 litres a second. Suitable for application in timber and concrete floors, including suspended floors where shallow invert pipes are needed, a range of attractive caps and grates in stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

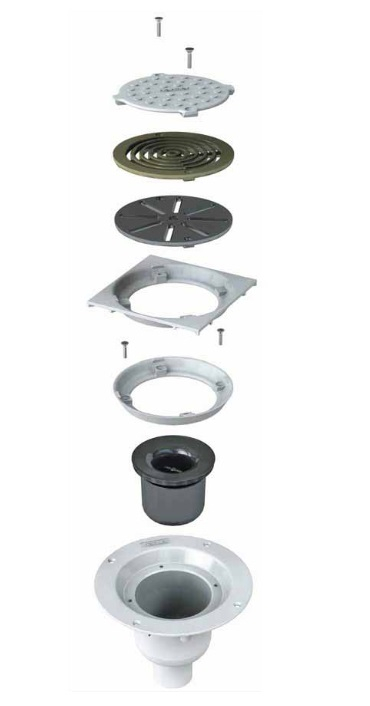

Please note: This product includes stainless steel screws, a drain cap, a tile frame, a clamp and clamp screws, a 50mm foul air trap and a vertical drain body.

Why choose Harmer aluminium shower drains?

Harmer aluminium shower drains have been designed specifically to meet the requirements of British and European standard BS EN 1253 for design, flow performance and loading whilst providing an attractive and efficient shower drain. Harmer shower drain bodies are manufactured from 100% recycled aluminium that can be recycled once again at the end of its life cycle. LM6 aluminium alloy is used to create the drain bodies as in marine conditions and general atmospheric conditions, the material displays high resistance to corrosion.

Harmer shower drains can withstand up to 300kg of vertical loading and there’s an option available to order security fixings for drain caps in areas where the cap may otherwise be tampered with. Contact us on 01752 692 221 for more information.

Harmer Aluminium Vertical Shower Drain Specification

Cap Style: Plain cap
Flow Rate: 1.3 litres/second
Load Class: K3 to BS EN 1253
