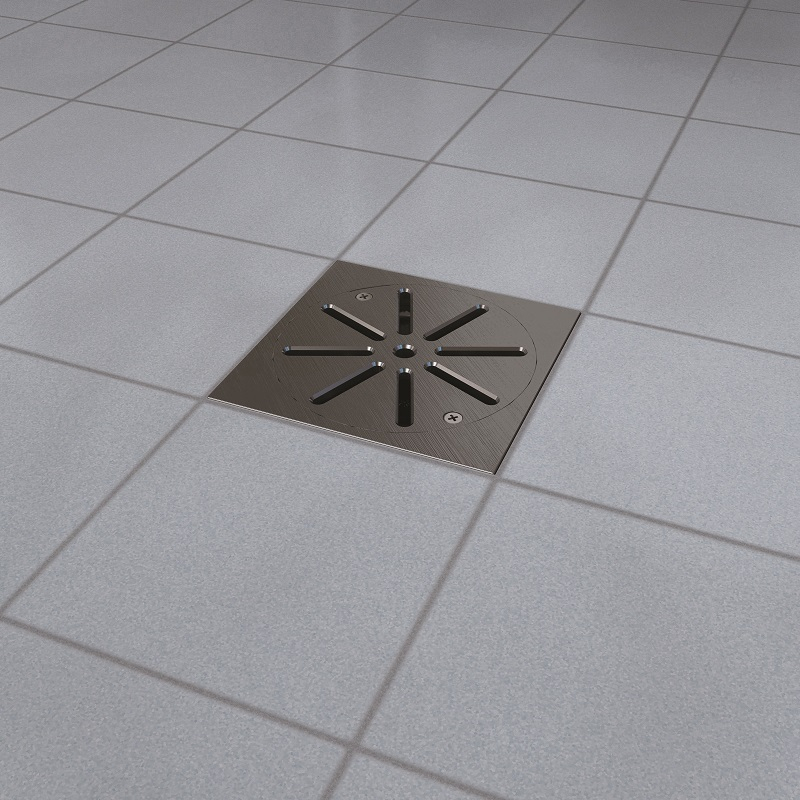

Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Star Grate - Tile Floor 150 x 150mm

Code:
AHS/SS/T15
Brand:

Harmer aluminium horizontal shower drain is designed with a stainless steel clamp with a star grate drain cap and a 150mm x 150mm tile frame. For cleaning, replacements or to give access to the 50mm trap below, the drain cap is easily removable. The horizontal Harmer shower dr... Read More

£230.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Oct 8th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Timely arrival."

Mr Brown

Description

Harmer aluminium horizontal shower drain is designed with a stainless steel clamp with a star grate drain cap and a 150mm x 150mm tile frame. For cleaning, replacements or to give access to the 50mm trap below, the drain cap is easily removable. The horizontal Harmer shower drain body is also compatible with 56mm cast iron, HDPE and PVC pipes. Complete with an integral fall in the sump to eliminate silt collection. A removable 50mm foul air trap is also included for maintenance purposes.

Thanks to the use of LM6 aluminium alloy in its manufacturing, this product is exceptionally lightweight, durable and strong. A polyester powder coating has also been applied for increased protection. When it comes to flow rate, the shower drain offers a flow rate of up to 0.8 litres a second. Ideal for application in timber and concrete floors, these drains can also be fitted with one of many caps in the range. As well as grates in stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

Features & Benefits: Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Star Grate - Tile Floor 150 x 150mm

  • Stainless steel clamp with a star grate drain cap
  • Suitable for timber and concrete floors with flexible sheet flooring
  • Manufactured from 100% recyclable aluminium
  • Manufactured to BS EN 1253 requirements of design, flow and load testing
  • Greater impact resistance
  • Star grate cap style
  • 0.8 litres per second flow rate
  • K3 to BS EN 1253 load class
  • High corrosion resistance

Harmer shower drains have been designed with specific standards in mind. As such, this drain meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading. Providing an attractive and efficient shower drain that avoids disrupting the aesthetics of the room. The shower drain body is manufactured from 100% recycled aluminium. A fully recyclable product when reaches the end of its life cycle. To create the drain bodies as in marine conditions and general atmospheric conditions, LM6 aluminium alloy is used in its manufacturing. This material displays high resistance to corrosion.

When considering its loading capacity, the drain can withstand up to 300kg of vertical loading. You can also opt for security fixings for drain caps in areas where the cap may otherwise be tampered with.

Harmer Aluminium Horizontal Drain Contents

  • 1 x star pattern grate drain cap
  • 1 x 150mm x 150mm tile frame
  • 1 x stainless steel clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • There is an option to order security fixings for drain caps in areas where the cap may otherwise be tampered with. Contact us for more information.

Details

Material Aluminium
Stainless Steel
Product Type Shower Drain Weight Class K3 Type Domestic
Application Concrete
Floors
Timber
