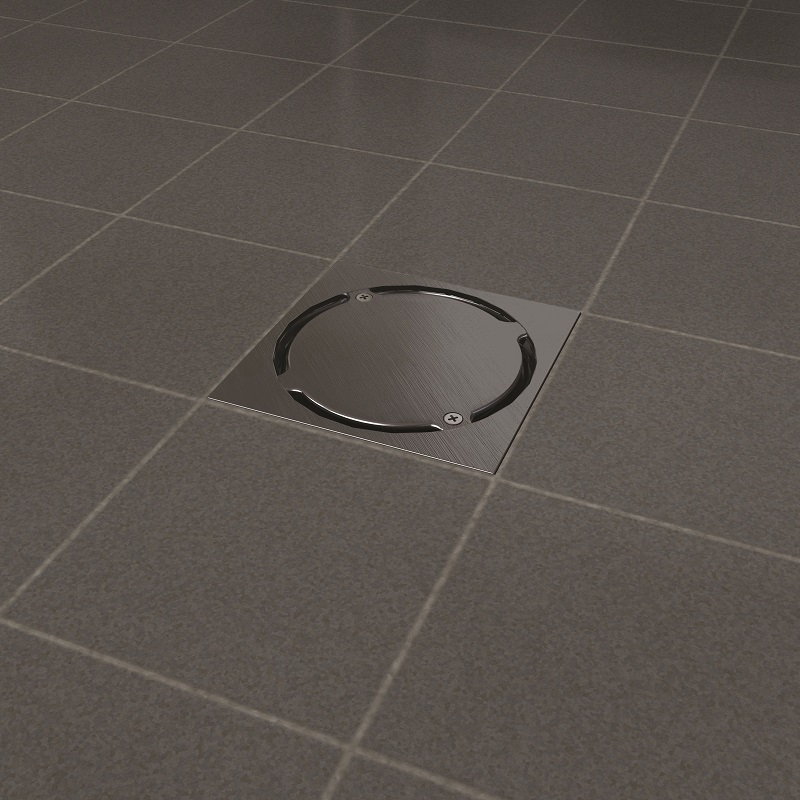

Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Plain Cap - Tile Floor 150 x 150mm

Code:
AHS/CS/T15
Brand:

Completed with a stainless steel 150mm x 150mm tile frame and a clamp with a plain drain cap, this horizontal shower drain from Harmer is manufactured from LM6 aluminium alloy with a protective polyester powder coating. This ensures that is strong and durable yet lightweight. S...Read More

£230.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Apr 25th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"fantastic service"

jo

Description

Completed with a stainless steel 150mm x 150mm tile frame and a clamp with a plain drain cap, this horizontal shower drain from Harmer is manufactured from LM6 aluminium alloy with a protective polyester powder coating. This ensures that is strong and durable yet lightweight.

Suitable for application in concrete and timber floors, this shower drain is ideal for use on tiled flooring. Delivering a flow rate of up to 0.8 litres per second, it features an integral fall in the sump to eradicate silt collection and is compatible with 56mm cast iron, HDPE and PVC pipes. The drain cap is easy to remove for cleaning, replacement or giving access to the removable 50mm foul air trap below.

Features & Benefits: Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Plain Cap - Tile Floor 150 x 150mm

  • 0.8 litres per second flow rate
  • K3 Load Class to BS EN 1253
  • 150mm x 150mm tile frame
  • Stainless steel clamp and plain cap
  • Manufactured from LM6 aluminium alloy
  • Polyester powder coated for extra protection
  • High corrosion resistance
  • Compatible with 56mm cast iron, HDPE and PVC pipes
  • Ideal for tiled flooring

Meeting the requirements of British and European standard BS EN 1253, for flow performance, loading and design, this Harmer shower drain delivers a visually pleasing yet efficient solution. Made from 100% recycled aluminium, it can be recycled once again at the end of its lifespan. Displaying high corrosion resistance, it is ideal for general atmospheric environments and marine conditions. Additionally, it can withstand up to 300kg of vertical loading.

Harmer Aluminium Horizontal Drain Contents

  • 1 x plain drain cap
  • 1 x stainless steel clamp
  • 1 x 150mm x 150mm tile frame
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Clamp screws
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • There is an option available to order security fixings for drain caps in locations where the cap may otherwise be tampered with. Contact us for more information.

Details

Material Aluminium
Stainless Steel
Product Type Shower Drain Application Concrete
Floors
Timber
