Harmer Aluminium Horizontal Drain Nickel Clamp & Ring Grate 200 x 200mm - Tile Floor

Code:
AHS/RN/T20
Brand:

Able to withstand 300kg of vertical loading and equipped with a K3 Load Class (to BS EN 1253), Harmer's aluminium horizontal shower drains benefit from an integral fall in the sump that prevents the collection of silt. They are best used with 56mm pipes in cast iron, HDPE and ...Read More

£275.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Apr 3rd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Havent used yet but great product…"

Sue Mackenzie

Description

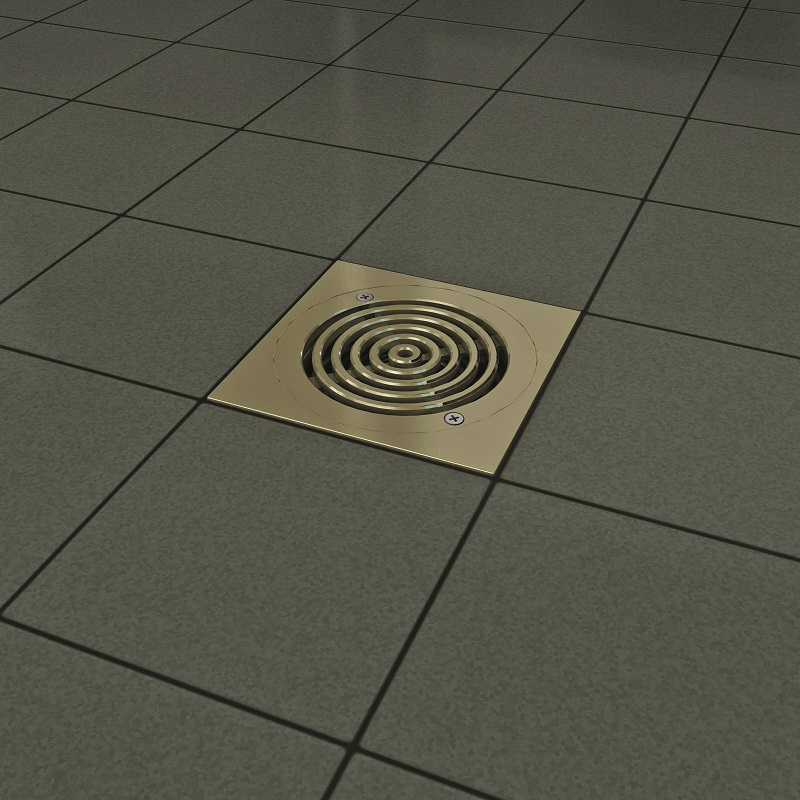

Able to withstand 300kg of vertical loading and equipped with a K3 Load Class (to BS EN 1253), Harmer's aluminium horizontal shower drains benefit from an integral fall in the sump that prevents the collection of silt. They are best used with 56mm pipes in cast iron, HDPE and PVC materials and have flow rates of up to 0.8 litres a second. This drain in particular is supplied with a concentric ring drain grate cap and a 200mm x 200mm tile frame.

The drain cap is easy to remove. In turn, you can clean and replace it when necessary, as well as gain access to the 50mm trap beneath it. The drain is made from a polyester powder-coated LM6 aluminium alloy for a durable and lightweight structure that can resist corrosion in marine and general atmospheric environments.

Features & Benefits: Harmer Aluminium Horizontal Drain Nickel Clamp & Ring Grate 200 x 200mm - Tile Floor

  • Ring grate cap style
  • Quality LM6 aluminium alloy construction
  • Polyester powder coatings ensure extra protection
  • Flow Rate of 0.8 litres per second
  • Lightweight and durable
  • Recyclable after reaching the end of its life cycle
  • Load Class of K3 to BS EN 1253

Suited to timber and concrete floors, the drains from Harmer have a collection of caps and grates that are available in a wide variety of materials. Materials include nickel bronze, stainless steel, and aluminium for tiled and sheet flooring.

Harmer Aluminium Horizontal Drain Contents

  • 1 x concentric ring drain grate cap
  • 1 x nickel bronze clamp
  • 1 x 200mm x 200mm tile frame
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Clamp screws
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • Option available to order security fixings for drain caps in areas where the cap may be tampered with. Contact our sales team for more information.

Details

Material Aluminium
Nickel
Product Type Shower Drain Floor Type Tiled Flooring Application Concrete
Floors
Timber
