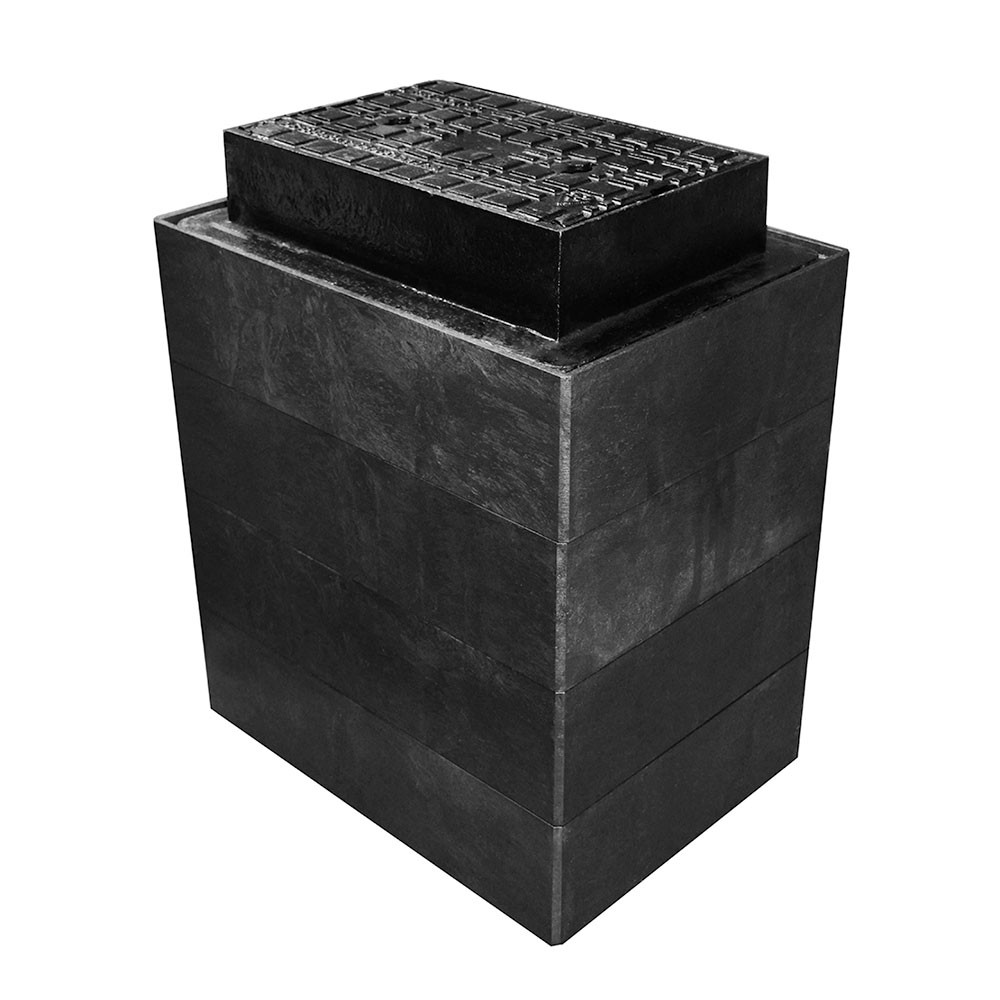

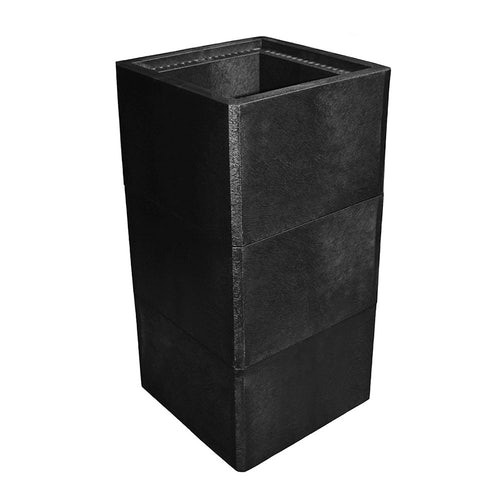

Pennine Eco Valve Plastic Chamber Section D400 - 150mm

Code:

PARENT-MP1515150

Brand:

This D400 Plastic Chamber section by Eco Valve is manufactured in the UK from 100% recycled plastic as an environmentally friendly alternative to traditional pre-cast concrete products. With a depth of 150mm, this section is a moulded chamber available in all industry-standard... Read More

View full product details

Ask a question about this product

Size

from

£7.80 Incl. VAT

Earn points

Delivery from: 2-3 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

Ask a question about this product

Create a wishlist

Description

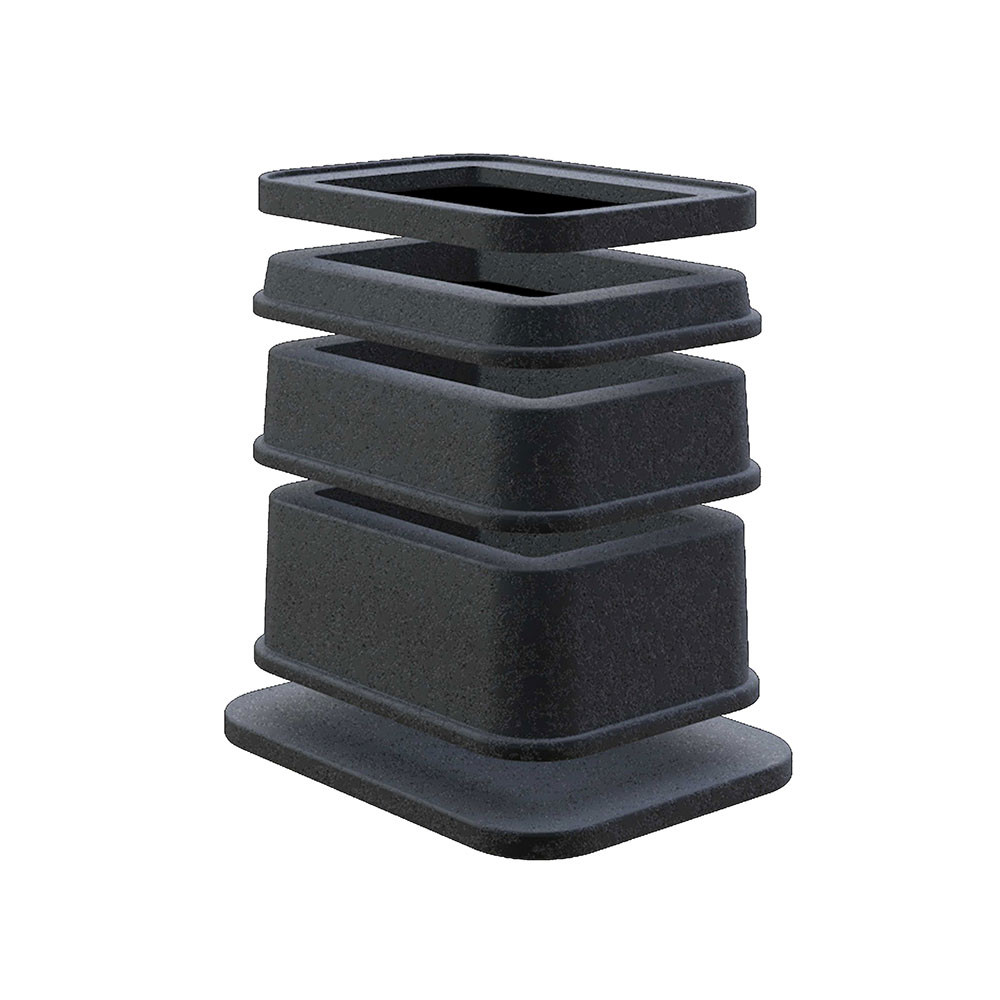

The interlocking design allows each chamber section to locate securely to form a totally load-bearing and free-standing chamber that is independently tested to BSEN124 D400 loadings and fully complies with BS5834. It is predominantly used within the utility sector as part of the valve, hydrant and meter chambers.

Features & Benefits: Pennine Eco Valve Plastic Chamber Section D400 - 150mm

UK manufactured from 100% recycled post-industrial plastics
Structural design - no concrete surround required
Far lighter than concrete
Massively reduces H&S implications for site personnel
Extensively used throughout the UK by most water utilities and their contractors

Standards & Certification

British/European standard(s):
Quality Standard(s): ISO 9001

Specification

Dimensions

Length: 150mm
230mm
430mm
600mm
900mm

Depth: 150mm

Size: 150mm x 150mm
230mm x 230mm
430mm x 280mm
600mm x 450mm
900mm x 600mm

Width: 150mm
230mm
280mm
450mm
600mm

Details

Material: Plastic

Product Type: Chamber Sections

Weight Class: D400

Downloads

Questions & Answers

Question:

Please advise if the ME4328150 Chamber has a cover/lid that i can also purchase. Many thanks.

Answer:

The Pennine Eco Valve Plastic Chamber Section D400 - 150mm x 430mm x 280mm does not come with a cover or lid included. However, we do offer a range of covers and lids that can be purchased separately. I recommend checking the product specifications to ensure the cover or lid you select is compatible with the dimensions of your chamber. Our customer service team would also be happy to assist you in finding the correct cover or lid for your needs. If you need further technical information about the product, you can refer to the Technical Information and Product Brochure.

Question:

How does a manhole cover fit onto Eco Valve plastic chamber section 430mm x 280mm x 150mm - D400?

Answer:

The dimensions on both products refer to the clear opening size. The frame would be larger than this, and sit on the 'lipped' area of the chamber. This would then be embedded in concrete.
