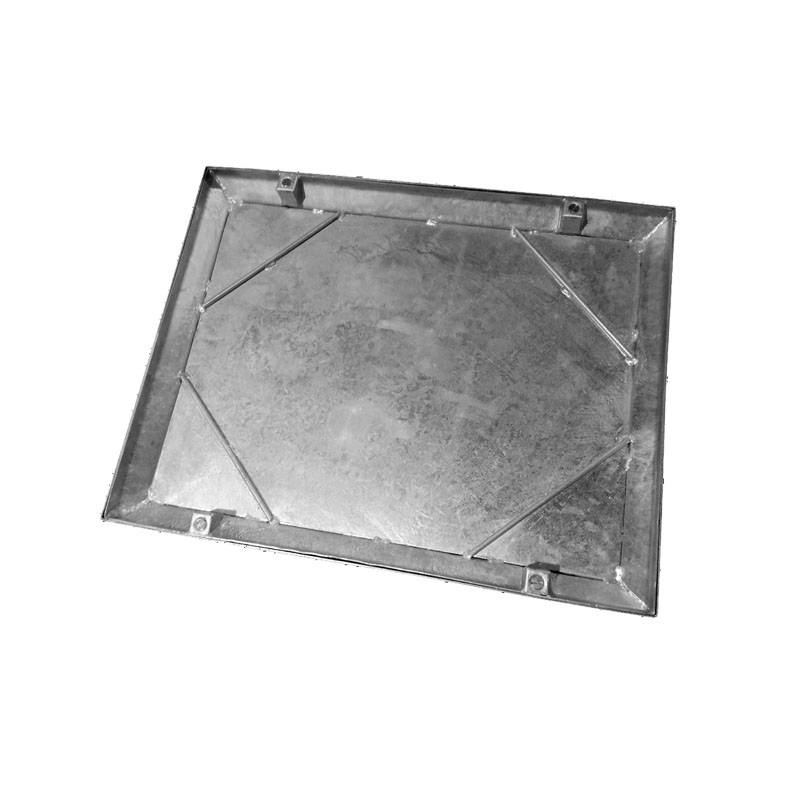

Wrekin Double Seal Recessed Manhole Cover & Frame 750mm x 600mm - 2.5 Tonne

Product Code:
C271M/075060
Brand:
Est. Delivery: TBC
Shipping costs displayed in basket.

This item is out of stock and not available to purchase.

We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

£111.96 Incl. VAT
£93.30 Ex. VAT
Oops! Please select from the options

Product Description

Wrekin’s recessed double seal manhole cover can withstand a gross laden vehicle weight of up to 10 tonnes. The unobtrusive recessed manhole covers are ideal for indoor use as they can be filled with tiles and other internal floor surfaces alongside a screed or concrete infill.

Both the cover and the frame are manufactured from galvanised mild steel to BS EN ISO 1461 and feature a neoprene rubber double seal and four screw locking. Used in light to medium duty applications, this recessed manhole cover is FACTA AAA and able to take pneumatic SMWL loads of 2.5 tonnes.

The recess of the tray has a 40mm nominal depth and the weight loading capabilities given are given under the assumption that the recess will be correctly filled with screed or concrete to the right level.

Wrekin Double-Seal Recessed Manhole Cover Specifications

Material: Galvanised mild steel
Clear Opening Dimensions: 750mm x 600mm
GLVW: 10 tonnes
SMWL: 2.5 tonnes

Product Documents

Dimensions

Width 600mm Length 750mm

Details

Depth 40mm Product Type Manhole Cover and Frame Maximum Weight Load 10 tonnes Material Galvanised Steel Weight Class B125
Shape Rectangular Seal Double-Sealed Features Recessed

Frequently Bought Together

loading...

Questions & Answers

Question:

Could you tell me the overall dimensions of the product?

Answer:

810 x 660mm

Question:

How heavy is this product?

Answer:

The product weight is 19.4KG

Product Reviews

5 / 5 1 reviews
Neil Asquith
5th March
excellent product delivered on time
