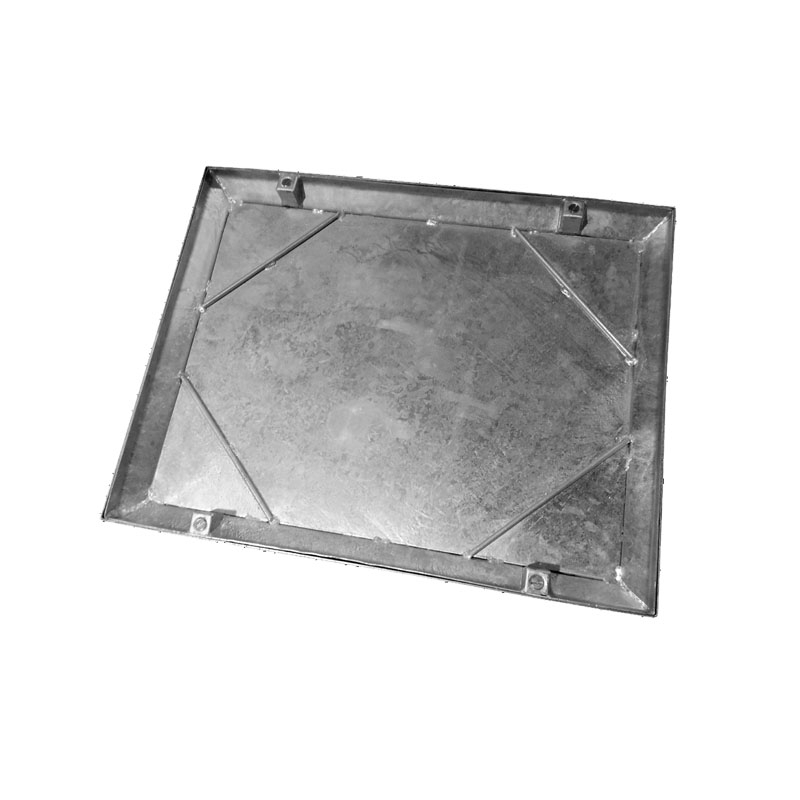

Wrekin Double Seal Recessed Manhole Cover & Frame 300mm x 300mm - 2.5 Tonne

Code:

C271M/030030

Brand:

Designed to tolerate a Gross Laden Vehicle Weight (GLVW) of up to 10 tonnes, Wrekin's recessed double seal manhole cover has an unobtrusive appearance. With a neoprene rubber double-seal and four screw locking, it is ideal for light to medium-duty applications and is FACTA AAA...Read More

View full product details

View questions about this product

Internal Dimensions

£62.00 Incl. VAT

Est. Delivery: TBC

Shipping costs displayed in basket.

We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

View full product details

View questions about this product

Create a wishlist

Nicholas fawcett

Description

The cover and the frame are made from mild steel, galvanised for additional durability. This product is the perfect choice for indoor use as it can be filled with tiles and other internal floor surfaces, alongside a screed or concrete infill.

Features & Benefits: Wrekin Double Seal Recessed Manhole Cover & Frame 300mm x 300mm - 2.5 Tonne

Made from durable galvanised mild steel
Tolerates a Gross Laden Vehicle Weight (GLVW) of up to 10 tonnes
Withstands 2.5-tonne pneumatic SMWL loads
Ideal for light to medium-duty applications
Suits indoor use
Can be filled with tiles and other internal floor surfaces, alongside a screed or concrete infill
38mm tray depth
Clear Opening of 300mm x 300mm and Over Frame Size of 385mm x 385mm

The recess of the tray has a 40mm nominal depth. Weight-loading capabilities are provided with the belief that the recess will be correctly filled with screed or concrete to the appropriate level.

Standards & Certification

FACTA Class: AAA
Galvanised mild steel to BS EN ISO 1461

Specification

Dimensions

Length 300mm Depth 40mm Width 300mm

Details

Material Galvanised Steel Product Type Manhole Cover and Frame Seal Double-Sealed Features Recessed

Maximum Weight Load 10 tonnes Weight Class B125 Profile Recessed Internal Dimensions 300mm x 300mm External Dimensions 385mm x 385mm

Use Location Domestic Driveways Load-Bearing Strength 12.5 Tonnes

Downloads

Questions & Answers

Question:

Do the dimensions of a Wrekin double seal recessed manhole cover & frame 300mm x 300mm - 2.5 Tonne refer to the opening size?

Answer:

The Wrekin double seal recessed manhole cover & frame 300mm x 300mm - 2.5 Tonne dimensions refer to the clear opening size. The overall frame size is 385mm x 385mm.

Question:

Is this product made for infilling with floor tiles?

Answer:

This can be filled with tiles or screed.

Question:

Is the Wrekin double seal recessed manhole cover & frame suitable for outdoor use?

Answer:

The Wrekin double seal recessed manhole cover & frame is suitable for both internal and external use.
