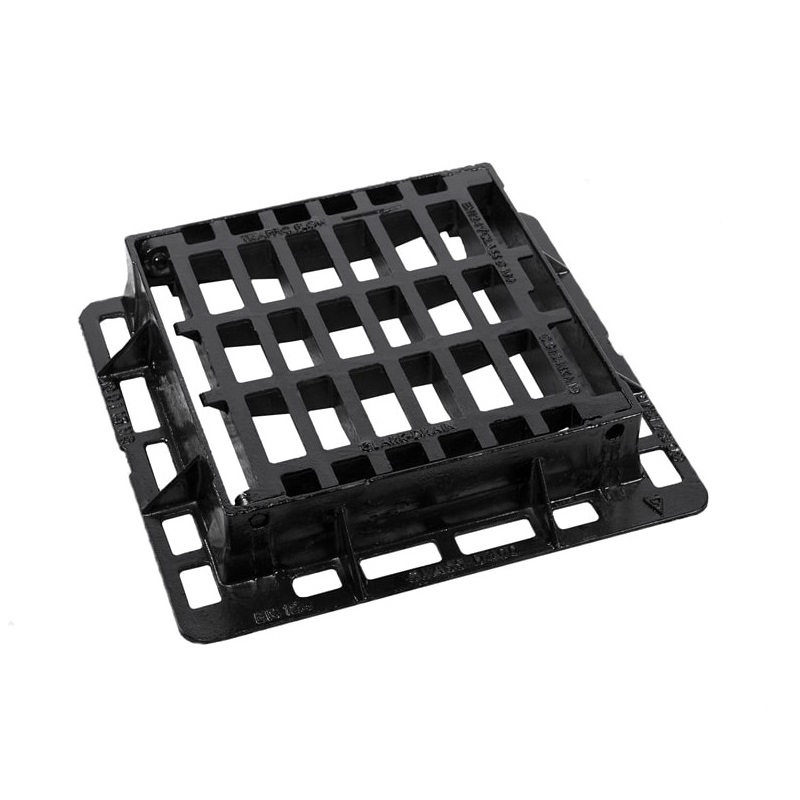

Clark Drain D400 Cast Iron Hinged Gully Grating & Frame - 425 x 425mm

Code:
CD 184S KMD

Alongside an anti-theft captive end hinge for added security and reversibility before installation, this Clark Drain D400 Cast Iron Hinged Gully Grating and Frame provides a slotted HA102/00 Type R grating, a three-sided flange to suit kerbside application and a non-rock taper...Read More

£130.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Apr 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Good quality…"

Grant Hirst

Description

Alongside an anti-theft captive end hinge for added security and reversibility before installation, this Clark Drain D400 Cast Iron Hinged Gully Grating and Frame provides a slotted HA102/00 Type R grating, a three-sided flange to suit kerbside application and a non-rock taper-lock wedge seating in order to increase stability.

This gully grating and frame is crafted from black bitumen-coated ductile iron and is ideal for highway and estate applications with its D400 loading class, which makes it suitable for withstanding 40-tonne test loads.

Features & Benefits: Clark Drain D400 Cast Iron Hinged Gully Grating & Frame - 425 x 425mm

  • Ideal for highway and estate applications
  • Loading class of D400 for 40-tonne test loads
  • Slotted HA102/00 Type R grating and three-sided flange for kerbside application
  • Non-rock taper-lock wedge seating to increase stability
  • Advanced security with an anti-theft captive end hinge
  • 580mm x 521mm (external dimensions)
  • 425mm x 425mm clear opening
  • 1103cm² waterway area

Standards & Certification

  • Conforms to BS EN124 1994
  • BSI Kitemark Certified
  • HA104/09 (low risk areas) compliant

Dimensions

Length 425mm Depth 100mm Width 425mm

Details

Material Cast Iron Product Type Gully Grid and Frame Weight Class D400 Profile Grid
Internal Dimensions 425mm x 425mm External Dimensions 580mm x 521mm Use Location High Traffic
Highways
Main Roads
Public Car Parks
Load-Bearing Strength 40 Tonnes
