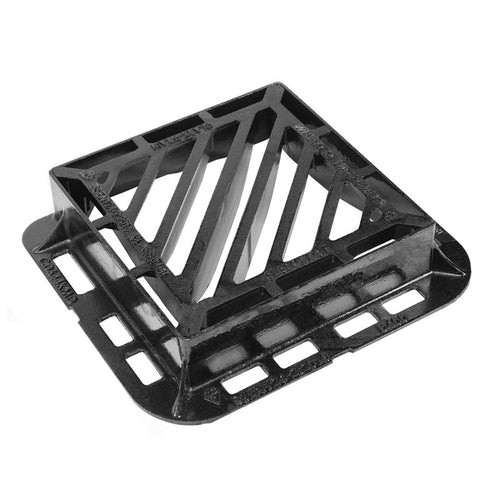

Clark Drain Cast Iron Double Triangular Kerbside Gully Grid and Frame 100mm - D400

Product Code:
Est. Delivery: Select option below
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£105.00 Incl. VAT
Oops! Please select from the options


Sub-Category: D400 Double-Tri Gully Grates & Frames for use in carriageway kerbside areas and commercial/industrial areas
Material Grade/s: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563:2011 Temporary Bitumen-based paint coating to BS 3416:1991
Weight (kgs): CLKS 644 KMD = 32, CLKS 644A KMD = 40

Frame Pressure

Bearing Area (N/mm2): CLKS 644 KMD = 3.8 CLKS 644A KMD = 4.0
Waterway Area (cm2): Both Versions = 900
Grating Type (as per HA102/00): R
Load Rating Classification: D400 (40 tonnes)


BSI Kitemark Certified to BS EN124:1994
Double-tri non-rock 3 point suspension grating design
3-Sided flange design for installing against kerbs


Material Cast Iron Depth 100mm Weight Class D400 Internal Dimensions 415mm x 415mm
440mm x 400mm
600mm x 600mm


There are no product downloads to show.

Questions & Answers

There are currently no questions for this product.

Have a question about this product?


5 / 5 1 reviews
Michael Phillips
Reviewing Clark Drain D400 Class Cast Iron Manhole Gully Grid and Frame 600 x 600 x 100mm
10th September 2020
very please with quock service
