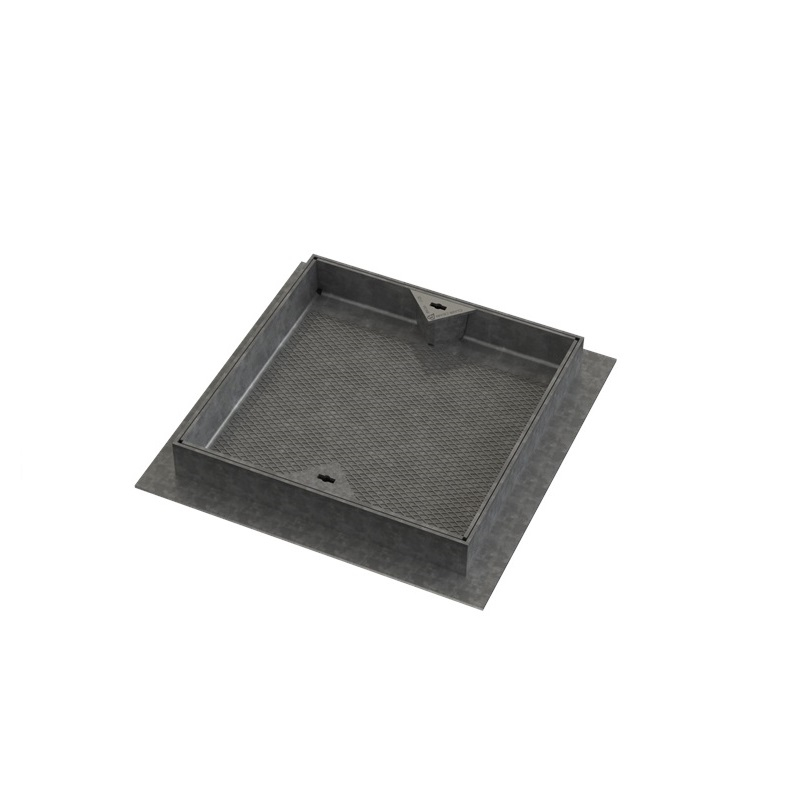

The recessed pavior cover with perfect functionality to protect underground cables. Kitemark certified to BS EN 124 B125 Class, the Clark-Drain Precinct series is a high quality recessed cover designed to enable continuous paving patterns for a variety of sectors including resi... Read More
The recessed pavior cover with perfect functionality to protect underground cables.
Kitemark certified to BS EN 124 B125 Class, the Clark-Drain Precinct series is a high quality recessed cover designed to enable continuous paving patterns for a variety of sectors including residential, public, communications, transport, security and utilities.
Application: Driveways and Pedestrian Areas
Loading: B125
Accreditations:
BS EN124:1994. BSI Kitemark Certified.
Cover: Single tray with fixed grouting mesh bonds reduces in situ movement of infill material
Components: The high traffic tollerance cap reduces incidences of heels getting caught in exposed holes
Material: The robust 6mm thick galvanised steel design offers loading resistance which exceeds the BS EN 124 B125 class
Locking: Turn catch lock system is below surface area and offers quick, easy secure access to the chamber.
Badged: Keyholes can be badged, e.g. TfL, CATV, ELEC, CCTV, etc.
Lifting: Removable slide out channel support and cover are easy to handle with a lifting key as a one person operation reducing the risk of workplace injury.
External Dimensions: 82mm
Clear Opening: 450mm x 450mm
