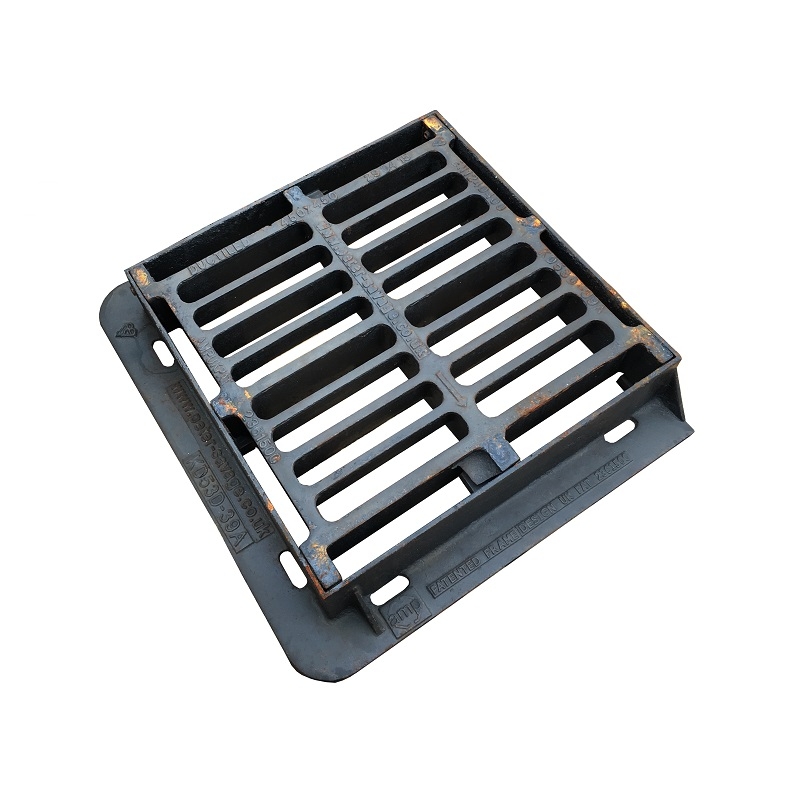

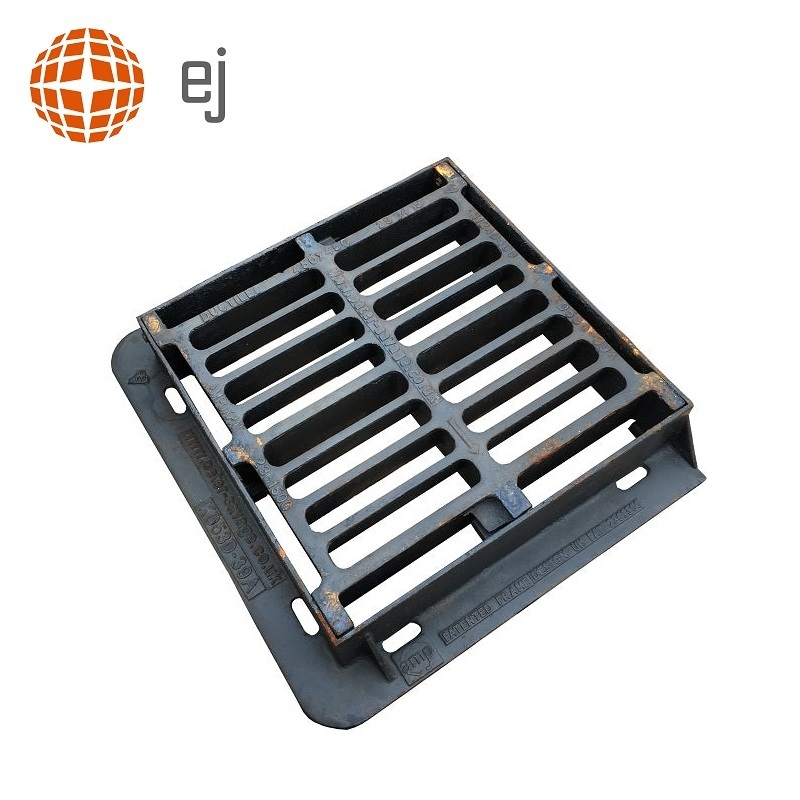

Cast Iron Straight Bar Hinged Gully Grating 443 x 446mm - D400

Code:
KD53D
Brand:

For Group 4 use across carriageways and main roads exposed to fast-moving traffic, this EJ Cast Iron Straight Bar Hinged Gully Grating and Frame is constructed with the use of (A. M. P.'s) anti-movement technology and meets BS EN124 Class D400, making it suited to 40-tonne safe ... Read More

£160.62 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Mar 19th - order in:
days hrs mins secs
View Transport Policy

Next day delivery is subject to stock availability. If products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"super fast"

Daniel Kelly

Description

For Group 4 use across carriageways and main roads exposed to fast-moving traffic, this EJ Cast Iron Straight Bar Hinged Gully Grating and Frame is constructed with the use of (A.M.P.'s) anti-movement technology and meets BS EN124 Class D400, making it suited to 40-tonne safe test loads.

With an 80mm depth of cover insertion into frames and a 75mm solid bedding width, this product features a non-rock captive reversible side hinge that improves stability and makes operation quiet. It has been works safety tested to 44 tonnes, equivalent to +10%, and has a ductile iron structure for an advanced weight-to-strength ratio finished with a black coating.

Features & Benefits: Cast Iron Straight Bar Hinged Gully Grating 443 x 446mm - D400

  • For Group 4 use across carriageways and main roads exposed to fast-moving traffic
  • Class D400, suited to 40-tonne safe test loads
  • Non-rock captive reversible side hinge improves stability and makes operation quiet
  • Black coated ductile iron structure for an advanced weight-to-strength ratio
  • 443mm x 446mm over grate and 592mm x 530mm external frame
  • 100mm frame depth
  • 1428cm² waterway
  • 33kgs weight

This Ultra product is manufactured to conform to the Design Manual for Roads Bridges Vol 4, Section 2, part 5. HA104/02 and BS 7903. Three-flanged products are for Group 3 areas.

Standards & Certification

  • Meets BS EN124 Class D400
  • Kitemarked for third party assurance of quality

Dimensions

Length
443mm
Depth
100mm
150mm
Width
446mm

Details

Material
Cast Iron
Product Type
Gully Grid Cover
Shape
Rectangular
Weight Class
D400
Profile
Grid
Internal Dimensions
443mm x 446mm
Use Location
High Traffic
Highways
Main Roads
Public Car Parks
Load-Bearing Strength
40 Tonnes
