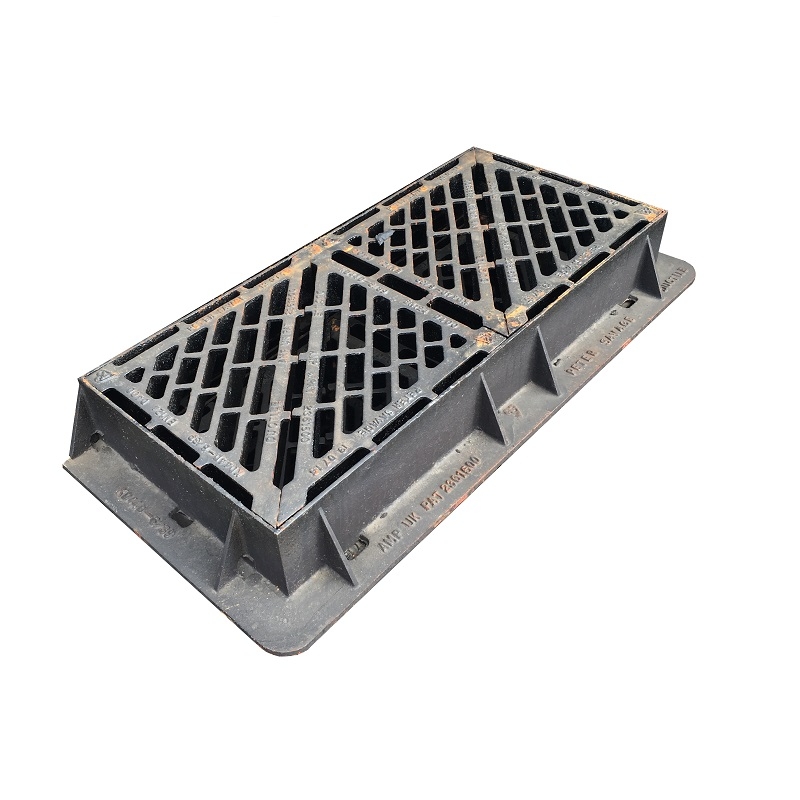

Cast Iron Double Triangular Gully Grating & Frame 1000 x 450mm - D400

Code:
KD44D-6
Brand:

150mm Deep - Heavy Duty Ductile Iron, Double Triangular Gully Gratings & Frame Usage: Group 4 Carriageways & Main Roads for Fast Moving Traffic Manufactured to BS EN124 Class D400 Highways agency , HA104/02 compliant 40 Tonne Safe Test Load Kitemarked for third...Read More

Create a wishlist

"good value..."

LESCRAWFORD

Description

150mm Deep - Heavy Duty Ductile Iron, Double Triangular Gully Gratings & Frame
Usage: Group 4 Carriageways & Main Roads for Fast Moving Traffic

  • Manufactured to BS EN124 Class D400
  • Highways agency , HA104/02 compliant
  • 40 Tonne Safe Test Load
  • Kitemarked for third party assurance of quality
  • BS 7903 :1997 compliant
  • Works safety tested to +10% above EN 124 = 44Tonnes
  • Anti movement technology for improved bonding to bedding material
  • Non rock three point suspension for stability & silent operation
  • Ductile iron for improved weight to strength ratio
  • Black coated finish

Dimensions

Over Grate: 1000 x 450mm
External Frame Size: 1170 x 547mm
Frame Depth: 150mm

Waterway: 3805cm2
Weight: 98kgs

Dimensions

Length 1000mm Width 450mm

Details

Material Cast Iron Product Type Gully Grid Cover Shape Rectangular Weight Class D400
