Alumasc Aqualine Modern Internal Angle

Product Code:
Est. Delivery: Select option below
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£102.84 Incl. VAT
Oops! Please select from the options


Designed to be used on the corners of your installation, this internal angle allows for your gutter system to run around the building, avoiding any obstacles or protrusions without issues. This internal angle has been specifically fabricated for use in conjunction with the extruded aluminium Aqualine Modern guttering system.

With a sleek and contemporary appearance, this Modern internal angle can essentially be hidden from view with concealed site bracketry for fixing and jointing for a clean and finished appearance contributing to the smooth lines and intricate detailing of the complete gutter system. This efficient and compact internal angle as part of the Aqualine Modern rainwater system complements and enhances the appearance and architectural appeal of your building. Lightweight and easy to install once the support brackets have been fixed to the building fabric, this internal angle can be assembled with a simple union clip fix.

Features & Benefits: Alumasc Aqualine Modern Internal Angle

  • Available in a variety of colours with a BBA certified process for factory-applied polyester powder coatings
  • Made from 100 % recyclable and environmentally friendly aluminium
  • Made from robust and non-corrodible aluminium with long-lasting results and minimal maintenance required
  • Made from aluminium with a life expectancy of 40 years (rural/suburban areas) and up to 25 years (industrial/marine areas)
  • Lightweight and easy to handle and install
  • Enhances buildings with secret fix bracketry, smooth lines and intricate detailing giving a completely clean appearance
  • Available in a range of diameters and angles
  • Suitable for both flush and projecting eaves applications
  • Constructed with a high flow capacity for enhanced performance
  • Uses a unique, all-weather 'dry' jointing system delivering a completely clean and secure installation
  • Made in the UK to British standards
  • Manufactured with aluminium extrusions 6063 T6 alloy to BS EN 573: BS EN 755, BS EN 12020 and BS 9101

The secret fix bracketry and all-weather 'dry' jointing using internal unions secured by sliding lock bars ensure a fully secure and clean installation. As part of an efficient and compact rainwater system, this Modern internal angle helps to increase high flow capacity and performance with full capability for thermal movement at every joint, avoiding any potential damage of splitting and cracking. Ideal for both projecting eaves and flush applications, this internal angle is available in a variety of angles, diameters and factory-applied BBA approved polyester powder colour coatings. Made from robust and non-corrodible aluminium, this internal angle has been manufactured to be long-lasting with minimal maintenance required.


Colour Anthracite Grey
Silver Metallic Matte
Material Aluminium Gutter Diameter 100mm
Angle 90 Degrees
135 Degrees

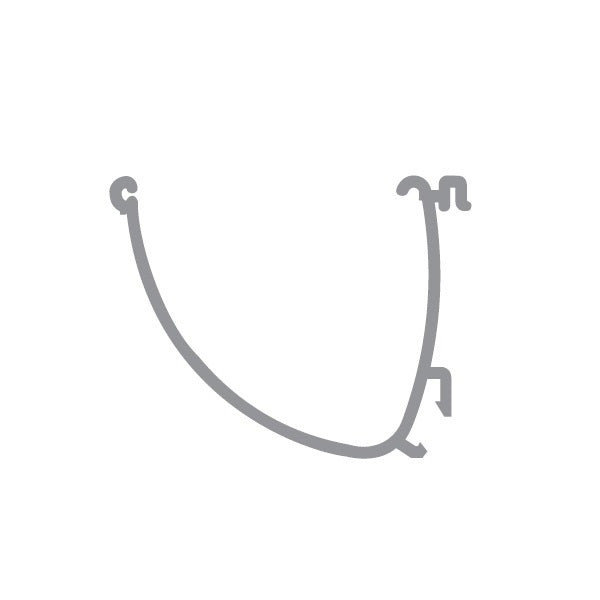

Profile Modern Range Aqualine
