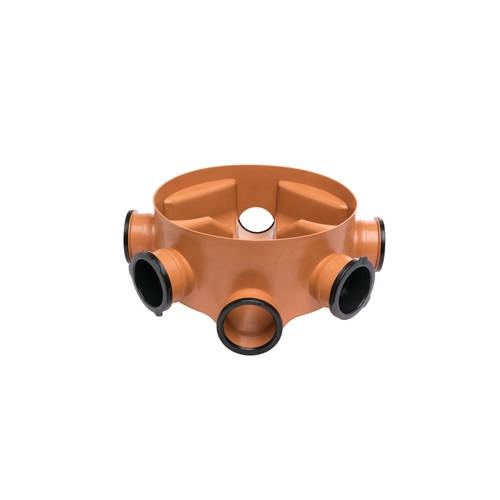

Adoptable Inspection Chamber Base 450mm x 110mm 5 Inlet (inc.3 Plugs)

Product Code: B4500
Brand: Brett Martin
Est. Delivery: 3-5 Working Days
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£126.40 Incl. VAT
£105.33 Ex. VAT
Bulk order for discounts
  • 1+
    £126.40 Incl. VAT
    £105.33 Ex. VAT

Product Description

Brett Martin's drainage solutions are designed and developed to achieve compliance with industry regulations and standards. Following the publication of sewers for Adoption 7 (sfA7) outlining revised performance criteria, newly-defined design detailing and installation standards for all adoptable drainage networks – including manholes and inspection chambers. This ensures a full offering of Access and Inspection chambers to satisfy the requirements set out in sewers for Adoption 7 (sfA7) and building regulations.

Designed and tested to EN 13598-1 and in accordance with SfA7 and Building Regulations Part H1 the Adoptable 450mm Inspection Chamber is suitable for use in 110mm and 160mm adoptable and non-adoptable drainage applications where its superior strength and load bearing capabilities are required.  The distinctive terracotta colour provides easy identification of Adoptable Chambers on site.

Features

  • Two stronger base options for 110mm and 160mm drainage layouts each allow 16+ connection possibilities.
  • Superior strength and resilience provides enhanced loading capability for long term serviceability.
  • 5 inlets provide optimal direction of flow and the step down design with built in fall increases flow into the main channel to prevent blockages.
  • Sockets, which are fully compatible with Brett Martin’s BSI Kitemarked (EN 1401) underground range.
  • Sockets feature twin shot captive seals preventing seal dislodgement and enhanced sealing capability.
  • Enhanced cross foot design provides added stability.
  • Connecting lugs on the base and riser provide added stability during installation

Technical

Colour: Terracotta
Socket Diameter:
110mm
Chamber Base Diameter:
450mm
Invert Depth of Base:
225mm
Invert Depth of Base & 1 Riser:
525mm
Invert Depth of Base & 3 Risers:
1125mm
Effective Depth of Lid and Frame:
30mm
Internal Diameter:
450mm
Internal Diameter with Chamber Reducer:
350mm
