Product Description

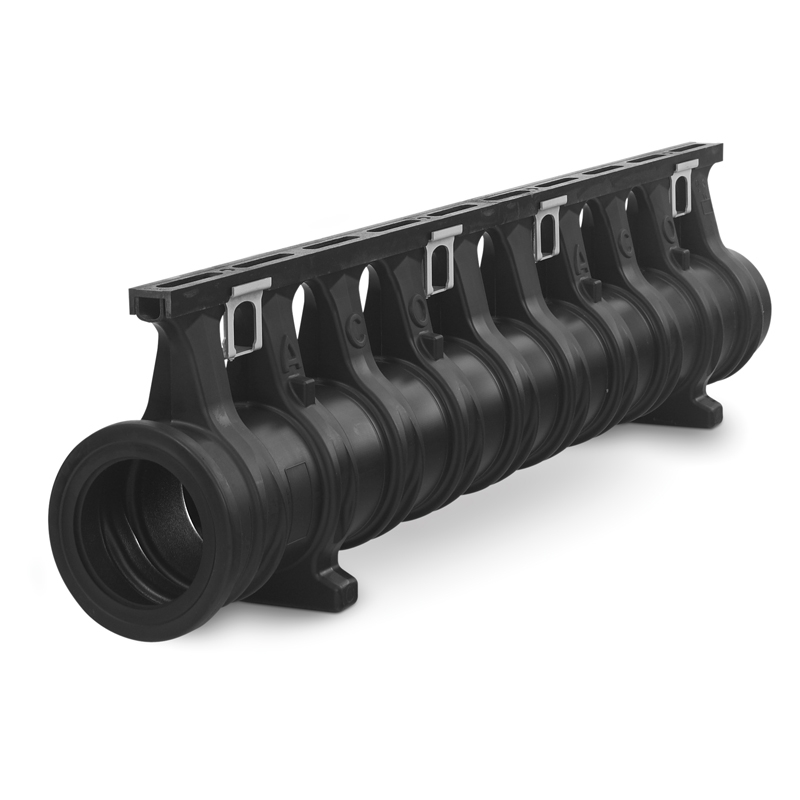

The ACO Qmax 225 channel is manufactured from recycled MDPE, which is lightweight, chemically resistant, and highly robust. Its circular bore, sealed push-fit channel connections, and unique patented inlet design ensure drainage inverts are kept to a minimum. The product is also fully integrated within the pavement detail providing long term dependable performance.

The Qmax has been designed to create a versatile, high-capacity slot drainage system that supports any load class. You can use it for a range of applications involving small to large catchment areas.

Features & Benefits: ACO Qmax 225 Slot Channel with Q-Flow Iron Edge Rail 2m

  • Eliminates stormwater carry over
  • Resistant to industrial effluents, oils, petrol, diesel, road salts and de-icing agents
  • Provides unbroken pavement construction across the line of the channel
  • Simplifies and strengthens the installation
  • Aesthetically pleasing finish - edge rails compatible with asphalt, concrete, block and natural stone pavements
  • Proven performance and durability
  • Manufactured using recycled and recyclable materials
  • Meets environmental construction targets
  • High-flow inlet and channel capacity
  • Suitable for all load classes A15 to F900
  • Step connectors available for simple channel connection
  • Patented Pavement beam channel and inlet design
  • Choice of three edge rail designs Q-Flow, Q-Guard and Q-Slot
  • Push fit channel joints with integrated channel seals

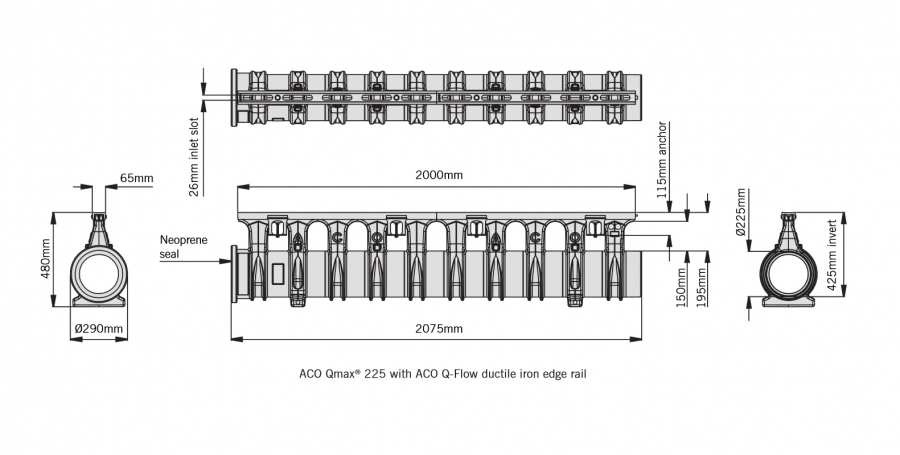

Product Specification

  • Length: 2000mm
  • Width: 290mm
  • Depth: 480mm
  • Material: Plastic
  • Features: Slot Drain
  • Load Rating: A15 - F900

Product Documents

Dimensions

WIDTH 290mm LENGTH 2000mm

Details

Depth 480mm Material Plastic Weight Class A15
B125
C250
D400
E600
F900
Features Slot Drain
