ACO Q-Brake Vortex Flow Control - 78mm Orifice

Product Code:
Est. Delivery: 10-15 Working Days
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£1,200.36 Incl. VAT
£1,000.30 Ex. VAT
Oops! Please select from the options

Product Description

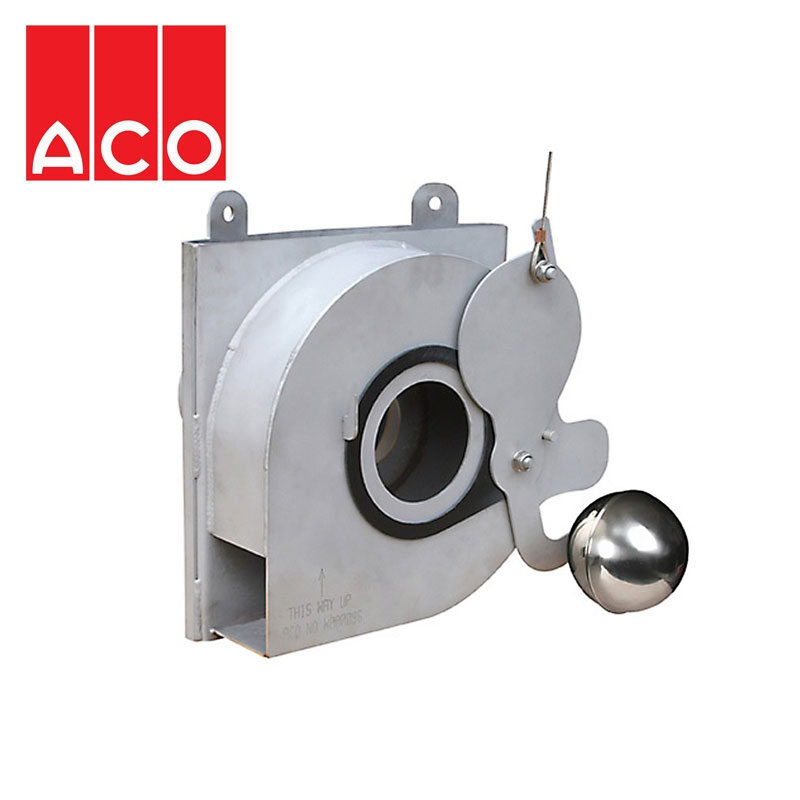

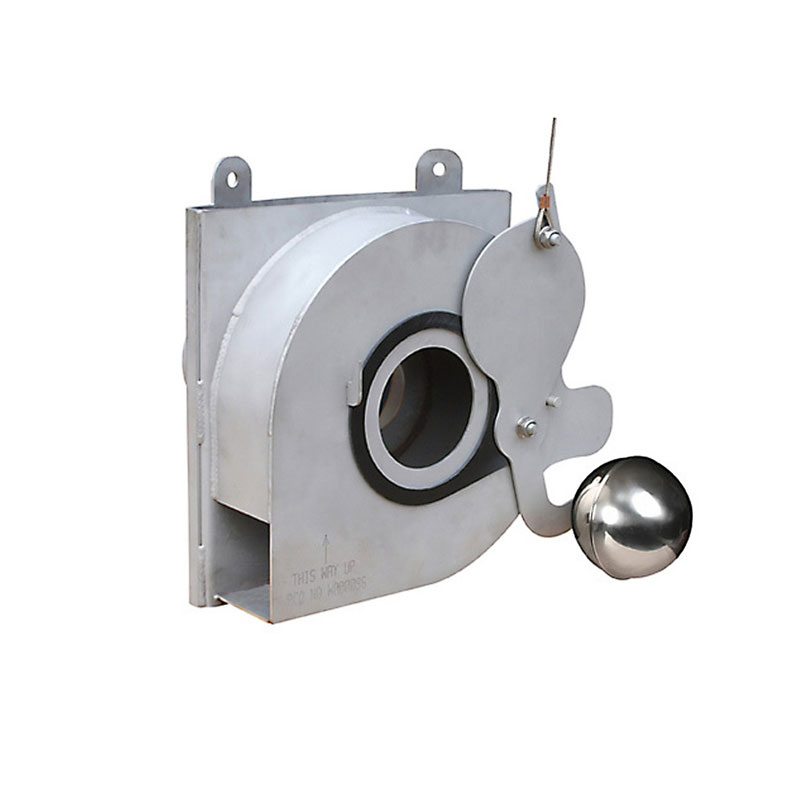

Aco Q-Brake Vortex Flow Control - 78mm orifice, design head 1.25m, 3.2l/s flow manufactured from Grade 304 stainless steel complete with integral draindown and bypass door.

ACO Q-Brake Vortex is a horizontal vortex flow control designed to prevent downstream flooding by controlling the release of stormwater before it discharges into the watercourse or sewer.

Designed to regulate stormwater flows from 1 -100 litres per second, ACO Q-Brake Vortex is tailored to the specific performance requirements of the application providing optimum efficiency within the drainage system.

Unlike more conventional methods, ACO Q-Brake Vortex provides superior hydraulic performance. It allows more flow at lower heads, reducing the need for on-site storage volume requirements and lowering installation costs.

The self-activating system has large clear openings making it less prone to blockage. The absence of any loose parts also reduces maintenance requirements. Remote access to drain the system is provided by the patented bypass door and emergency drain down.

ACO Q-Brake Vortex can be used in conjunction with ACO’s award winning attenuation and infiltration system, ACO StormBrixx, to provide a fully integrated drainage scheme for a wide range of applications. Where a discharge restriction is in place, ACO Q-Brake Vortex regulates surface water flows and satisfies planning and connection requirements set out in the Floods and Water Management Act.

Manufactured from grade 304 stainless steel, each ACO Q-Brake Vortex is individually configured to suit specific performance criteria and the profile of the chamber.
