ACO Junior Anti-Flood Backflow Floor Drain

Product Code:
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£125.93 Incl. VAT
Oops! Please select from the options

Product Description

The ACO JUNIOR® is a Type 5 anti-flooding device for grey water application and conforms to BS EN 13564. Compact construction makes this backflow gully ideal for new build or refurbishment projects. The award winning design incorporates backflow protection featuring two gravity closure devices one of which is an emergency seal which can be operated manually.

The ACO JUNIOR® installs into solid floor construction and connects to 110mm Ø drain pipe. An optional 50mm Ø back inlet allows connection from an appliance, shower or basin.

When backflow occurs, reversing the direction of flow, water reaches the primary flap and forces it shut. The secondary flap provides additional safety.

The manually operated emergency seal incorporated into the second flap provides the option to shut off the pipe system for additional security or where long periods of non-use may result in evaporation of the foul air trap allowing the drain to vent foul odours.

Product Documents

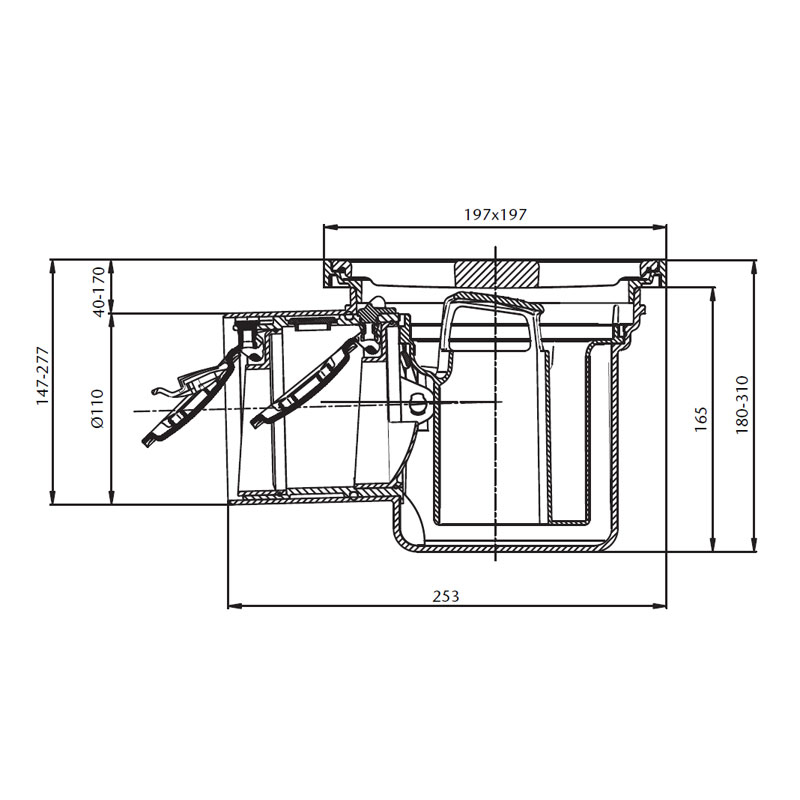

WIDTH 197mm LENGTH 197mm


Product Type Gully Material Plastic Gully Type Non-return Purpose Shower
Floor Type Tiled
