Dimensions
Height : 20mm
Width : 390mm
Material : Galvanised Steel
Grating : 14mm x 30mm mesh

FACTA Load Class A

Description

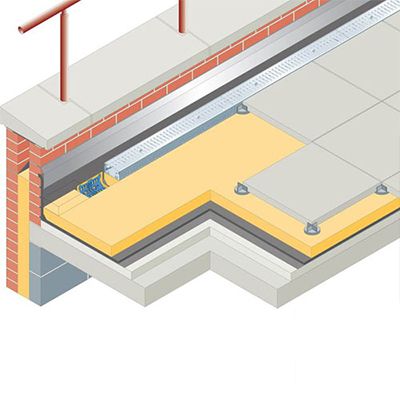

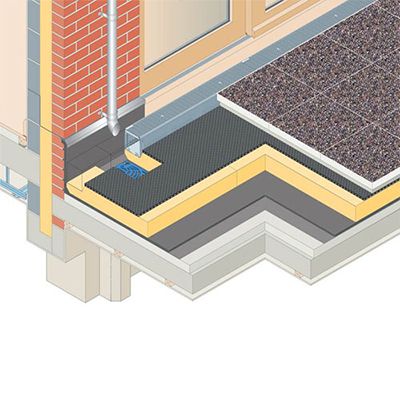

ACO FreeDeck is an advanced roof and balcony drainage system combining line drainage with point drainage by using an open sided drainage channel system to collect and convey rainwater to drainage points within a raised or suspended deck structure.
Rainwater is intercepted at 3 points:

• Surface run-off
• Percolation within the deck
• Rainwater outlet positions

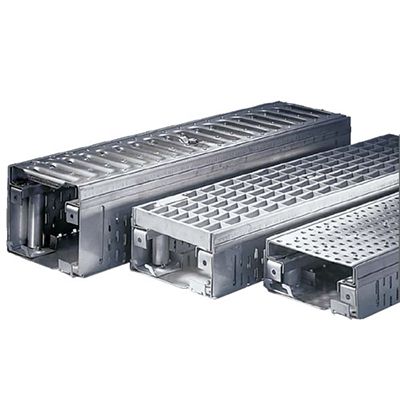

Manufactured in galvanised steel or stainless steel, ACO FreeDeck channel is simply laid directly onto the insulation layer or waterproofing membrane. Efficient drainage is provided where pavings are required to be laid 'open or closed joint' improving safety for foot traffic and weathered protection of the building fabric.

Complying with national access regulations
ACO FreeDeck channels provide level access drainage in compliance with:

• England and Wales Building Regulations ACCESS TO AND USE OF BUILDING: Approved Document M
• Scottish Building Standards DOMESTIC AND NON DOMESTIC HANDBOOK: Section 4
• Northern Ireland Building Regulations, DFP Technical Booklet R: 2006 ACCESS TO AND USE OF BUILDINGS: Section 7

 Key Features
ACO FreeDeck is used for rainwater drainage and safe access in a variety of applicationsDrainage for all types of suspended deck construction

• A system that details into all types of flat roof finishes
• Practical within all applications throughout building life
• A drainage system that protects and maintains the building fabric
