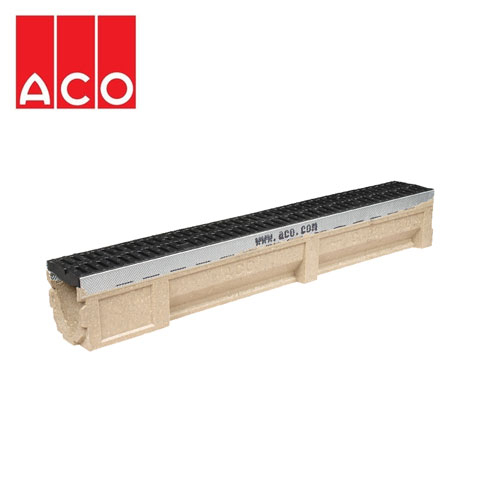

ACO CivicDrain Heavy Duty Channel Drain 135mm x 150mm x 1000mm - C250

Code:
25010
Brand:
Free UK Delivery

ACO’s high strength polymer concrete material in the CivicDrain makes it suitable for vehicle traffic up to Load Class C250. ACO CivicDrain comes complete with a corrosion resistant black composite heelguard grating, ideal for pedestrian traffic. The ACO Drainlock grat...Read More

Create a wishlist

"Swift delivery"

Mr Adrian Fielding

Description

ACO’s high strength polymer concrete material in the CivicDrain makes it suitable for vehicle traffic up to Load Class C250.

ACO CivicDrain comes complete with a corrosion resistant black composite heelguard grating, ideal for pedestrian traffic.

The ACO Drainlock grating has a bar-less locking device, allowing for quick and simple installation of gratings.

A full range of accessories are available, designed to aid simple and fast installation.

Benefits

  • Anti-shunt prevents grating movement once installed
  • ACO Drainlock grating - this bar-less locking device allows quick and simple installation of gratings
  • Protective galvanised steel edge rails for improved strength
  • Strong and lightweight polymer concrete design improves stability
  • Heelguard gratings with 8mm slots
  • CE marked and fully certified to Load Class C250 BS EN 1433:2002
  • Knockout for connection to 110mm PVC-U pipe via drain union
  • Male and female channel connections to aid accurate installation
  • Profile improves speed of water and promotes self-cleansing
  • Sealant groove for simple watertight installation

Technical

Length: 1000mm
Width: 135mm
Height: 150mm
Load class: C250

This product is sold in pallet quantities of 24.

Dimensions

Length 1m Depth 150mm Width 135mm

Details

Material Concrete Features Heelguard Grate Weight Class C250 Range CivicDrain

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Can we get a galvanised steel mesh grating for this channel?

Answer:

Unfortunatley not, you will need to look at the M100D channel drain range for this.
