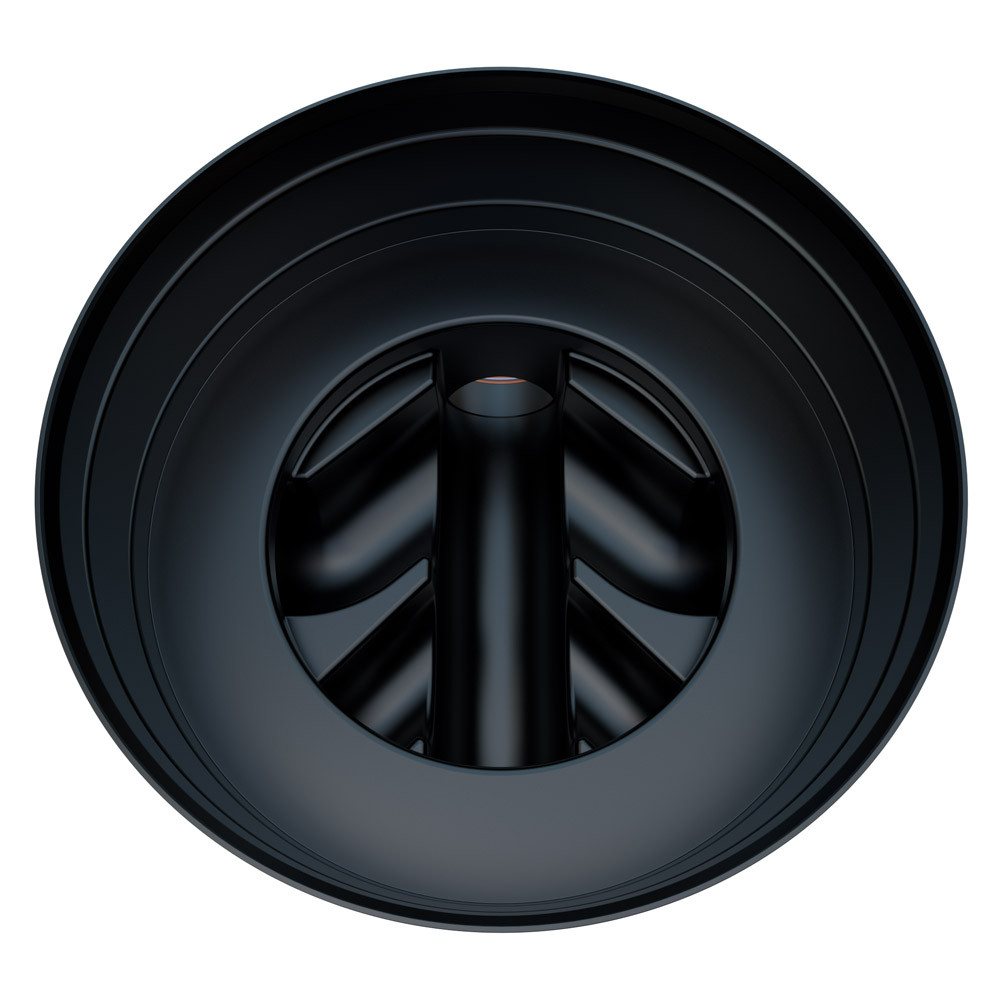

Turtle Enviro Accesso IC160 600mm Adoptable Inspection Chamber Base - 160mm & 110mm

Code:
AIC160600B
Brand:

Quick and straightforward to install, this Accesso Inspection Chamber Base from Turtle Enviro does not require any construction or wet trades, which ensures considerable onsite savings against various traditional construction methods, such as precast concrete. Much of the Acce... Read More

£285.00 Incl. VAT Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Jul 19th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"A first class service !"

A,. R. Jones.

Description

Quick and straightforward to install, this Accesso Inspection Chamber Base from Turtle Enviro does not require any construction or wet trades, which ensures considerable onsite savings against various traditional construction methods, such as precast concrete. Much of the Accesso range is lightweight, so no lifting equipment or machinery is needed.

Ideal for separate use at the base of a PCC Manhole as well as for shallow invert installations, this 600mm chamber base offers a preformed solution to labour-intensive benching. Alternatively, it can be used with the Accesso 600mm Sealing and the Accesso 600mm Chamber Riser, which, once installed, produces an Adoptable Inspection Chamber.

Features & Benefits: Turtle Enviro Accesso IC160 600mm Adoptable Inspection Chamber Base - 160mm & 110mm

  • Quick and simple to install with no assembly required
  • Single unit
  • Stepped base with 90mm step from side to main channel
  • No lifting equipment or machinery needed
  • Access shafts can be easily cut onsite to necessary depth
  • Meets DCG specification for Adoptable Sewers
  • 7.5kg weight
  • Four 160mm sockets and two 110mm sockets for pipe connections
  • 720mm length x 720mm width x 552mm height
  • 522mm inlet invert and 362mm inlet soffit depth

This chamber base includes 160mm EN 1401 main-channel socket connections and a further four inlet socket connections. Two of the additional inlets are 160mm EN 1401 at 90° to the main channel, while the other two are 110mm EN 1401 at 45°. The side inlets come equipped with blanking plugs, which can be detached if the inlets are needed.

This base meets both the Design and Construction Guidance (DCG) specifications for Adoptable Sewers and Sewers for Adoption (SfA7).

Please note:

  • Pre-assembled chambers at a range of depths are available, which are supplied as a complete unit, making them quicker and easier to install. A variety of Accesso pipework adaptors are also available to suit alternative connections.
  • The depth of this product refers to the distance between the top and bottom of the unit. The invert, meanwhile, refers to the distance between the top of the unit and the bottom of the inside of the connecting inlet pipework.

Details

Material Plastic Product Type Base Diameter 600mm Outlet Diameter 160mm
110mm
