Turtle Accesso 450mm Single Piece Adoptable Inspection Chamber for 160mm Pipework - 1000mm Depth

Code:
AIC1604501SP
Brand:

Accesso Inspection Chambers from Turtle Enviro are assembled in their UK factory and delivered to the site as a complete, single-piece unit. They are quick and easy to install, as they need no construction or wet trades, offering significant onsite savings against precast conc...Read More

£290.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Apr 3rd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Very quick delivery cheapest on th…"

Ken

Description

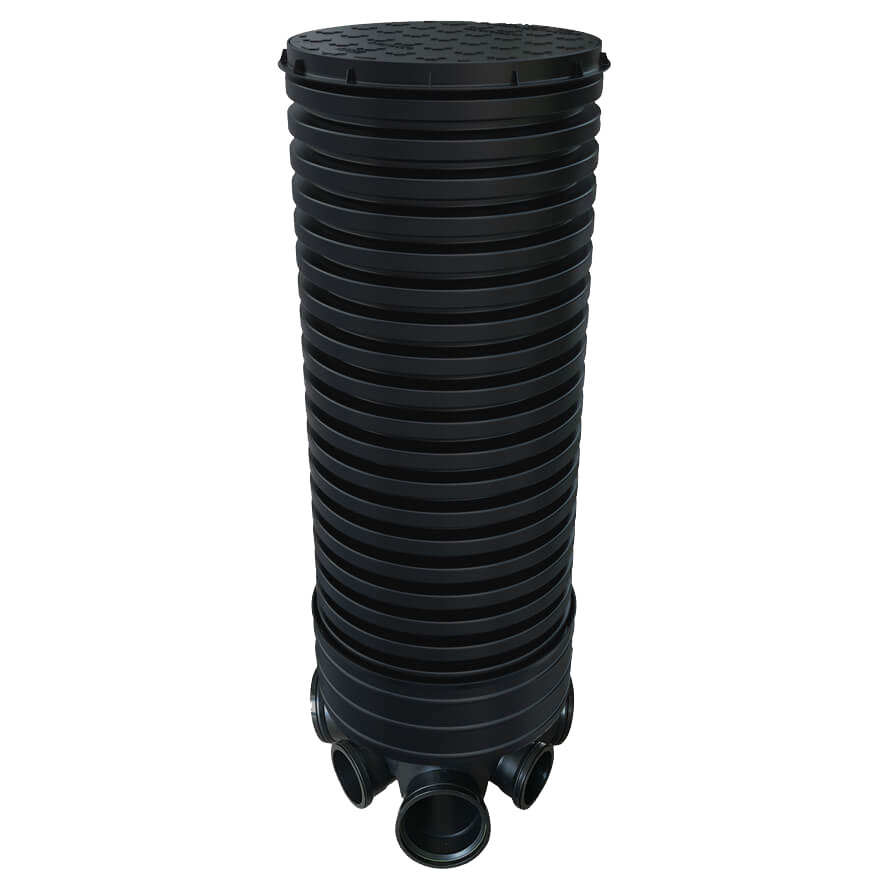

Accesso Inspection Chambers from Turtle Enviro are assembled in their UK factory and delivered to the site as a complete, single-piece unit. They are quick and easy to install, as they need no construction or wet trades, offering significant onsite savings against precast concrete and other traditional construction methods. They are relatively lightweight, and no machinery or lifting equipment is required for much of the range.

Chamber bases can be used separately for shallow invert installations and at the base of a PCC Manhole, offering a preformed option to labour-intensive benching.

Features & Benefits: Turtle Accesso 450mm Single Piece Adoptable Inspection Chamber for 160mm Pipework - 1000mm Depth

  • Single unit with no assembly needed
  • Quick and easy to install
  • No machinery or lifting equipment required
  • Stepped base with a 90mm step from side to main channel
  • Meets DCG requirement for Adoptable Sewers
  • Access shafts can be easily cut onsite to required depth
  • 935mm inlet invert, 825mm inlet soffit depth and 17kg weight

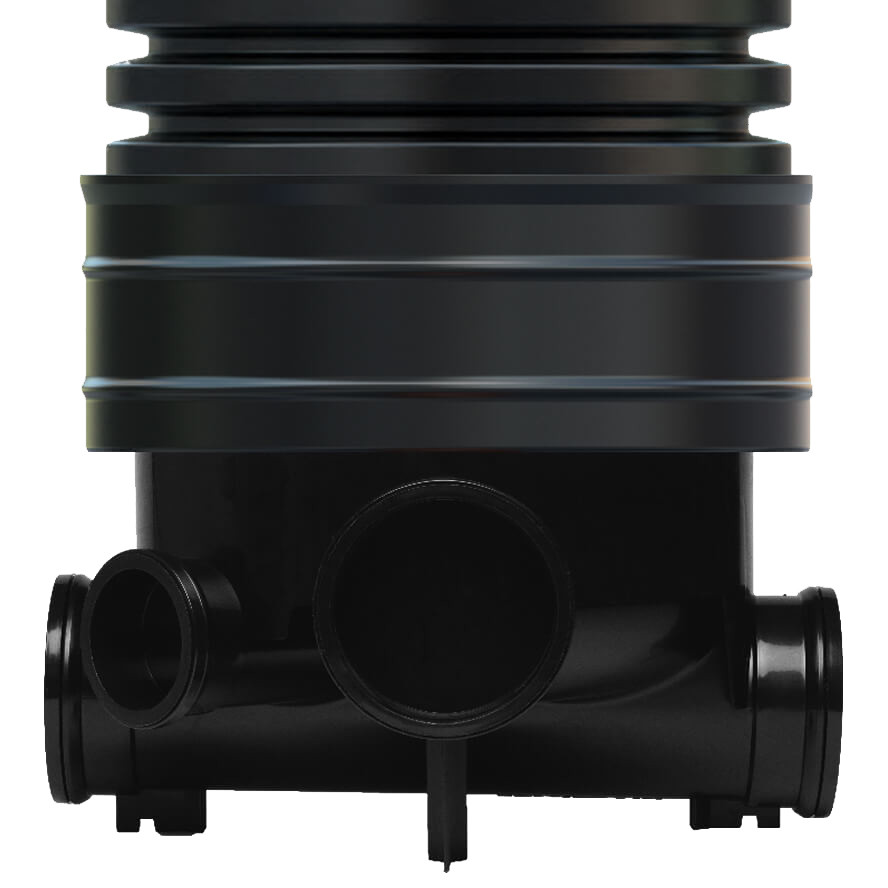

  • Four 160mm sockets plus two 110mm sockets for pipe connections
  • Made from plastic material with a Black colour
  • 645mm length x 680mm width x 970mm height

The Accesso range of 450mm Inspection Chambers from Turtle Enviro has several pipe connection options. This model has 160mm EN 1401 main-channel socket connections, with an additional four inlet socket connections. Two of the additional inlets are 160mm EN 1401 at 90 degrees to the main channel, and two are 110mm EN 1401 at 45 degrees. The side inlets come with blanking plugs fitted, which can be removed if the inlets are needed.

This Single Piece Adoptable Inspection Chamber, which has an injection moulded chamber base, features a stepped base which meets both the Design and Construction Guidance (DCG) requirements for Adoptable Sewers and Sewers for Adoption (SfA7).

Please note:

  • There are three chamber diameters available in the Accesso range - 450mm, 600mm and 1050mm, and each diameter has five standard depths available from 1 metre to 3 metres, with deeper chambers available on request.
  • A range of Accesso pipework adaptors are also available to suit alternative connections.
  • The depth of this product refers to the distance between the top and bottom of the unit. The invert, meanwhile, refers to the distance between the top of the unit and the bottom of the inside of the connecting inlet pipework.

Details

Product Type Inspection Chamber Diameter 450mm Invert 1000mm Outlet Diameter 160mm
110mm
