Clark Drain F900 Slotted Channel Drain 1000mm x 142mm x 127mm

Code:
CD F10-L00C-63
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 1000 (L) x 142 (W) x 127 (H) Clear Opening: 1000 (L) x 100 (W) x 112 (H)Channel & Grate: Polymer concrete with ductile iron edge rails. Knockout section for vertical outlet (optional). 2 x 500mm ductile iron slotted grates. Finish: Ductile iron grates ... Read More

Create a wishlist

"Only ordered a small part but the…"

Garry Taylor

Description

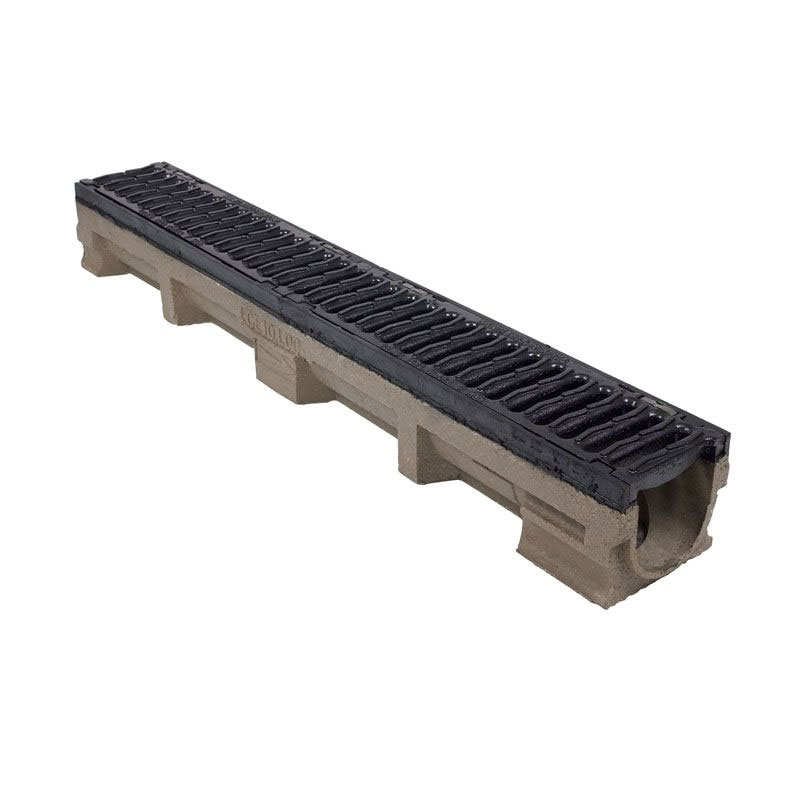

External Dimensions: 1000 (L) x 142 (W) x 127 (H)
Clear Opening: 1000 (L) x 100 (W) x 112 (H)
Channel & Grate: Polymer concrete with ductile iron edge rails. Knockout section for vertical outlet (optional). 2 x 500mm ductile iron slotted grates.
Finish: Ductile iron grates and edge rails are coated with black bitumen.
Locking: Catchlock clips fitted.
Pre-Sloped Option: Pre-sloped channels (# 001 to 020) incorporate a fall of 0.6% (6mm over 1mtr).

Applications

  • Airports
  • Loading Bays
  • Industrial Sites
  • Service Stations
  • Service Yards

Dimensions

Length
1m
Depth
127mm
Width
142mm

Details

Material
Concrete
Weight Class
F900
Grate Design Features
Slotted Grate
Grate Material
Ductile Iron
