Harmer ABS Vertical Shower Drain Pebble Cap - Sheet Flooring

Product Code:
Due in stock: 4 days
Est. Delivery: TBC
Shipping costs displayed in basket.

This item is out of stock and not available to purchase.

We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

£55.80 Incl. VAT
Oops! Please select from the options

Product Description

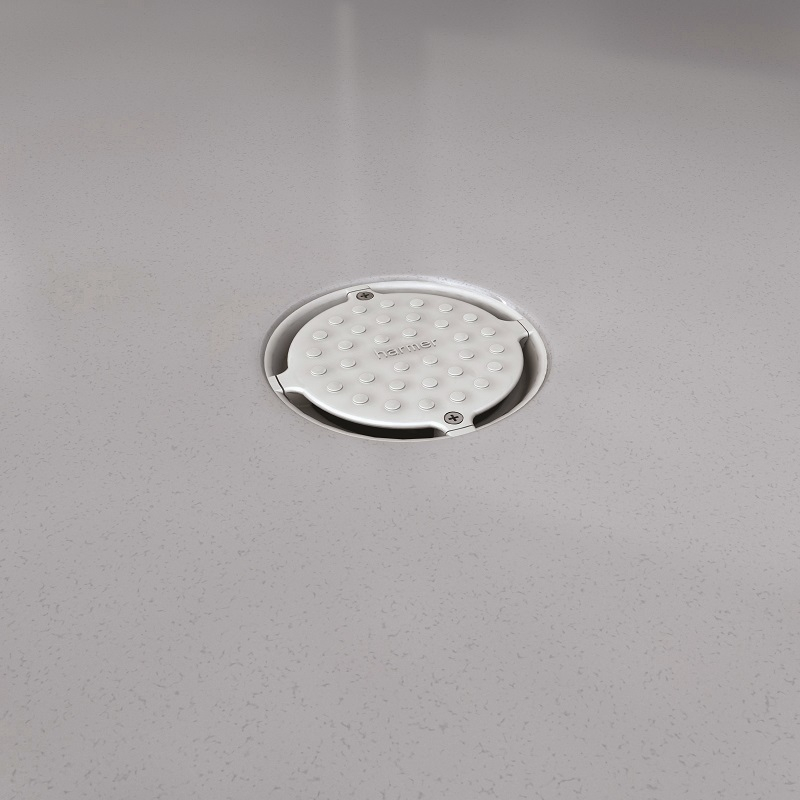

This Harmer ABS vertical shower drain features a pebble cap finish manufactured from antimicrobial white ABS plastic for great aesthetics as well as increased hygiene and reduce bacterial growth. Suitable for timber and concrete floors, this Harmer ABS shower drain is for flexible sheet flooring.

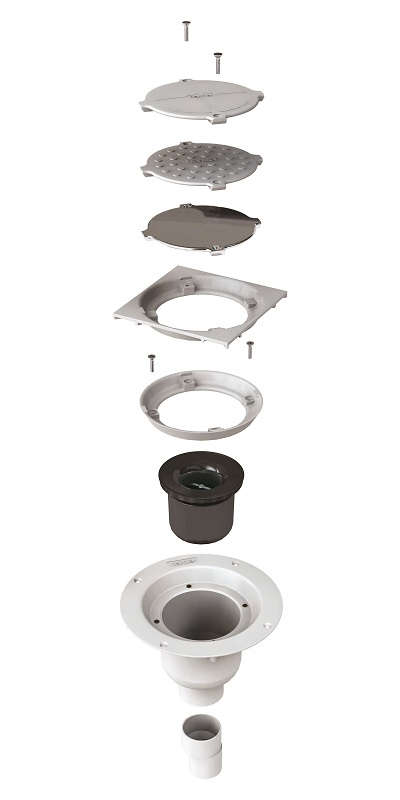

This product includes all the pieces of a vertical shower drain including:

  • Stainless steel screws for securing caps, and a pair for securing the clamp to the drain body
  • A cap
  • A clamp for securing the flooring, in matching colour and material to chosen cap
  • A 50mm foul air trap
  • A 2” outlet vertical drain body
  • A reducer for connecting 43mm ABS pipework

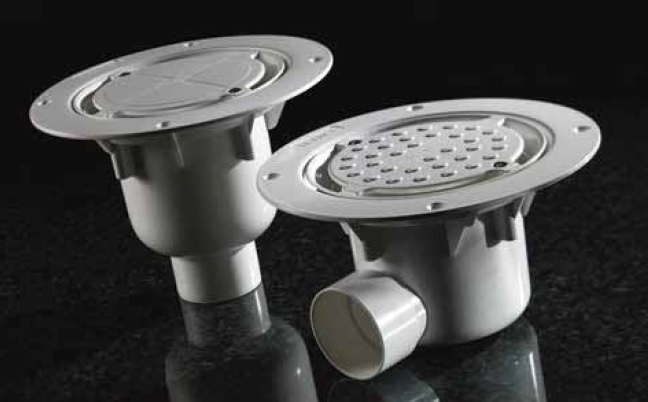

Harmer ABS Shower Drains

Harmer ABS shower drains have been manufactured to offer high flow drainage rates from a plastic compound drain body without compromising on hygiene, style or durability. The ABS compound that these Harmer shower drains are made from is treated with an antimicrobial layer to reduce the growth of bacteria and improve hygiene. Plus, ABS plastic is non-toxic and is 100% recyclable after its useful life.

Meeting BS EN 1253 requirements of design, flow and load testing, Harmer ABS shower drains are impact-resistant and made even more secure thanks to their under-ribbed flange. A choice of caps is available to complement other aesthetics in the bathroom as Harmer knows this matters whether this drain body is being used in a domestic residential bathroom or in a public bathroom. Ideal for public areas, security fixings are available on request to stop any unauthorised access or removal of the caps.

When security fixings are removed, the top access trap in vertical and horizontal ABS plastic shower drains is easy to remove and to replace should you need to. Installed in timber or concrete floors, a connection can be made to PVC pipes using connectors, but it’s recommended that these ABS shower drains are connected directly to ABS solvent cement pipes.

Harmer ABS Vertical Shower Drain Specifications

Cap Style: White ABS Pebble Cap
Flow Rate: 1.3 litres/second
Load Class: K3 to BS EN 1253
Weight: 0.5kg

Product Documents

Products We Recommend


Questions & Answers


Could you tell me the diameter of the trap at its widest point please


The 'cap' of the trap is 107.5mm, the body is 85mm.
