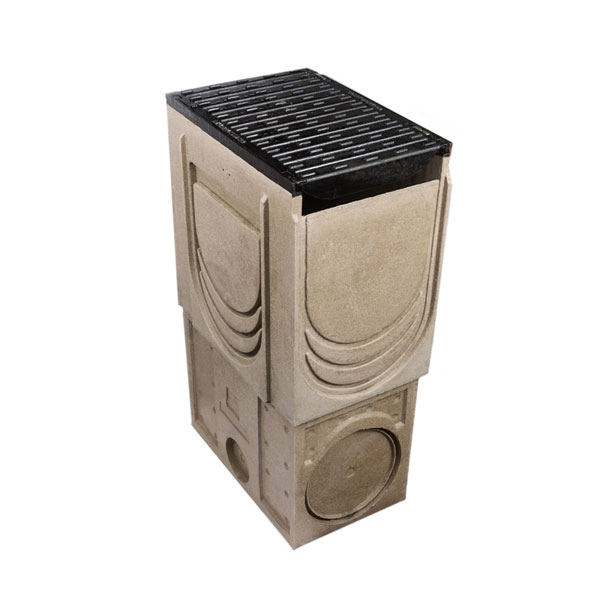

Clark Drain F900 Heelguard Channel Drain Sump 500 x 300 x 852mm

Code:
CD F30-SBC-69
Free UK Delivery

This item is out of stock and not available to purchase.

External Dimensions: 520 (L) x 350 (W) x 875 (D) Clear Opening: 500 (L) x 300 (W) x 852 (D) Applications Airports Loading Bays Industrial Sites Service Stations Service Yards Channel & Grate: Polymer concrete with ductile iron edge rails. Multiple knockout secti... Read More

Create a wishlist

"Website was very clear and easy to…"

Andrew Lanham

Description

External Dimensions: 520 (L) x 350 (W) x 875 (D)

Clear Opening: 500 (L) x 300 (W) x 852 (D)

Applications

  • Airports
  • Loading Bays
  • Industrial Sites
  • Service Stations
  • Service Yards

Channel & Grate: Polymer concrete with ductile iron edge rails. Multiple knockout sections offering a variety of inlet and outlet options. 1x 500mm ductile iron slotted grate.
Finish: Ductile iron grates and edge rails are coated with black bitumen.
Locking: Catchlock clips fitted.
Mud Basket: Galvanised steel.

Dimensions

Length
500mm
Depth
852mm
Width
300mm

Details

Material
Concrete
Weight Class
F900
Grate Design Features
Heelguard Grate
Grate Material
Ductile Iron
